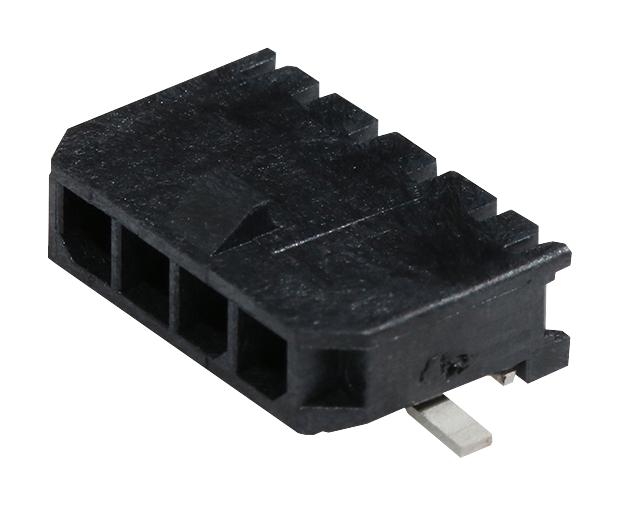

MOLEX 436500414 Micro-Fit 3.0 Header
The MOLEX 43650-0414 is a Micro-Fit 3.0 right-angle header, part of the 43650 series, designed for robust power and wire-to-board connectivity. This header features a 3.00mm pitch and is configured with 4 circuits, making it suitable for a variety of applications. The gold plating on the mating interface ensures excellent conductivity and durability, while the tin plating on the termination interface facilitates reliable solder connections. Constructed with high-temperature thermoplastic and brass, this header is Glow-Wire Capable and compliant with RoHS standards, demonstrating a commitment to environmental responsibility. It is designed to mate with Micro-Fit 3.0 receptacle housings and TPA receptacle housings, offering flexibility in system design. Its right-angle orientation simplifies PCB layout and reduces component height.
MOLEX 436500414 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 4 Circuits, with Solder Tab, Gold, Glow-Wire Capable, Black
- Application: Power, Wire-to-Board
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability REFLOW: Yes
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
