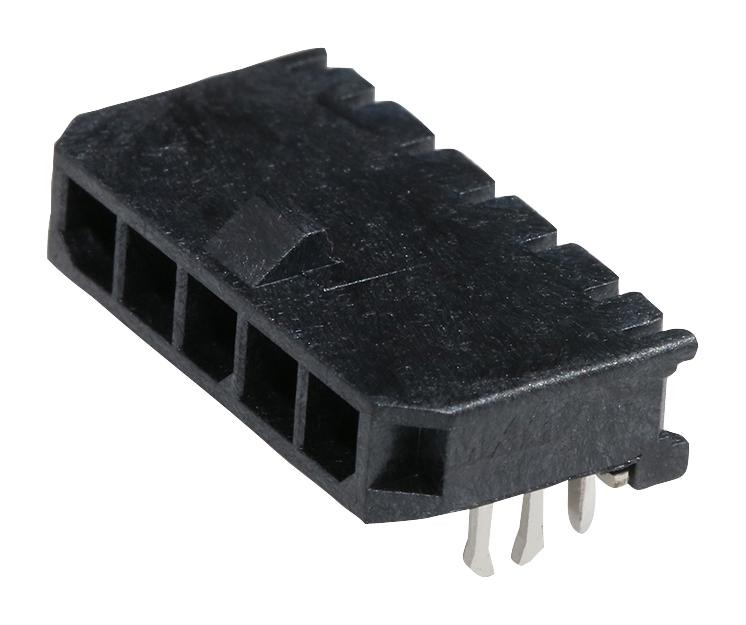

MOLEX 436500510 Micro-Fit 3.0 Header
The MOLEX 43650-0510 is a Micro-Fit 3.0 right-angle header, part of the 43650 series, designed for robust wire-to-board connections. This header offers 5 circuits with a 3.00mm pitch and is suitable for applications requiring a right-angle orientation. It's constructed with a high-temperature thermoplastic resin and features gold plating on the mating interface and tin plating on the termination interface, ensuring excellent electrical performance and durability. The header is glow-wire capable, meeting stringent safety standards, and is RoHS compliant, reflecting MOLEX’s commitment to environmental responsibility. It is designed to mate with Micro-Fit 3.0 receptacle housings and TPA receptacle housings, making it a versatile solution for various electronic assemblies.
MOLEX 436500510 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.954/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability REFLOW: REFLOW
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
