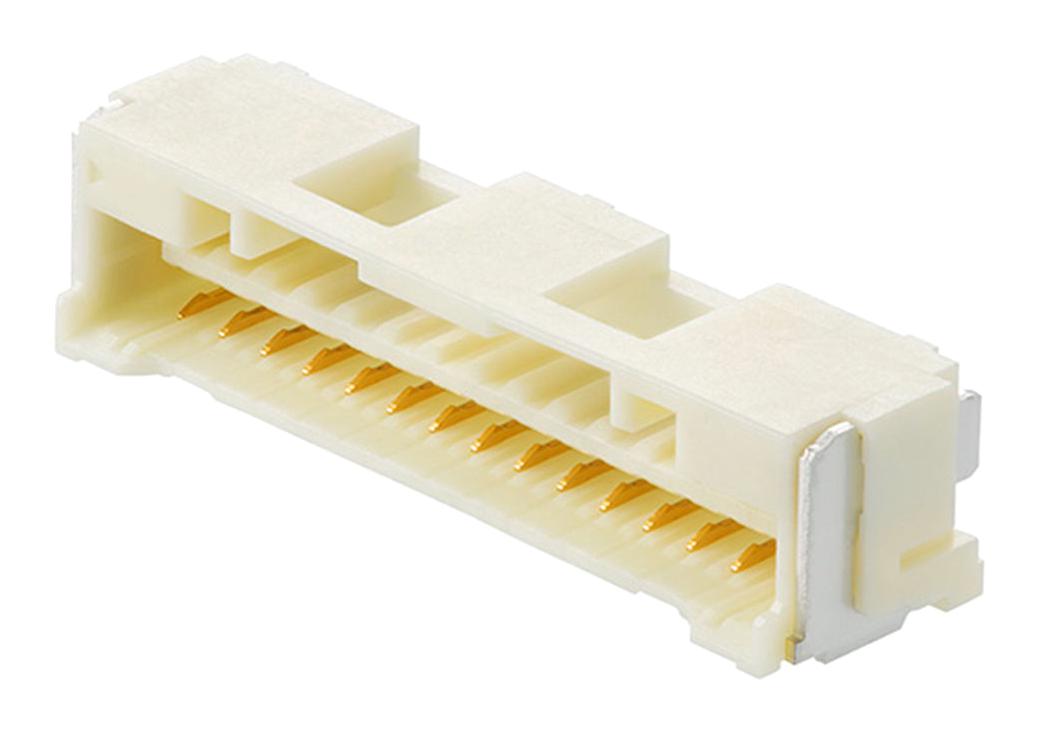

MOLEX 2132260210 Wire-to-Board Connector
The CLIK-Mate Wire-to-Board Receptacle features a 1.50mm pitch with a single row, designed for surface mount applications with a right-angle configuration. Constructed from durable polyamide resin and plated with gold over copper alloy contacts, it supports up to 30 mating cycles. Capable of handling 2A current at 100V AC/DC, it is RoHS, China RoHS, and REACH compliant, making it ideal for signal and wire-to-board applications in various industries. Its compact design ensures reliable connection and polarization features for secure mating.
MOLEX 2132260210 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 2
- Maximum Circuits: 2
- Color: Natural
- Material - Metal: Copper Alloy
- Plating - Mating: Gold
- Resin Material: Polyamide
- Operating Temperature: -40°C to +105°C
- Mating Cycles: Up to 30
- Current Rating: 2.0A
- Voltage Rating: 100V AC/DC
- Surface Mount: Yes
- Locking: Keyed and Guide features
- Packaging: Embossed Tape on Reel
- RoHS, China RoHS, REACH, Halogen-Free: Yes
- Glow-Wire Capability: No
- Guide to Mating: Yes
- Right-Angle: No
Buy the Molex 2132260210 – Reliable Signal Wire-to-Board Connector for Industrial Applications
Secure your electronic assemblies with the Molex wire-to-board connector featuring a 1.50mm pitch, gold-plated contacts, and surface mount design. It supports 2 circuits with up to 30 mating cycles, ensuring lasting durability and reliable connections. Ideal for signal and industrial applications, this connector is RoHS compliant and built for high performance in demanding environments. Its compact and secure mating design simplifies assembly and maintenance, making it the perfect choice for engineers seeking dependable connection solutions.
Buy Molex 2132260210 now and experience unmatched reliability and performance with durable gold-plated contacts and secure surface mount design.
