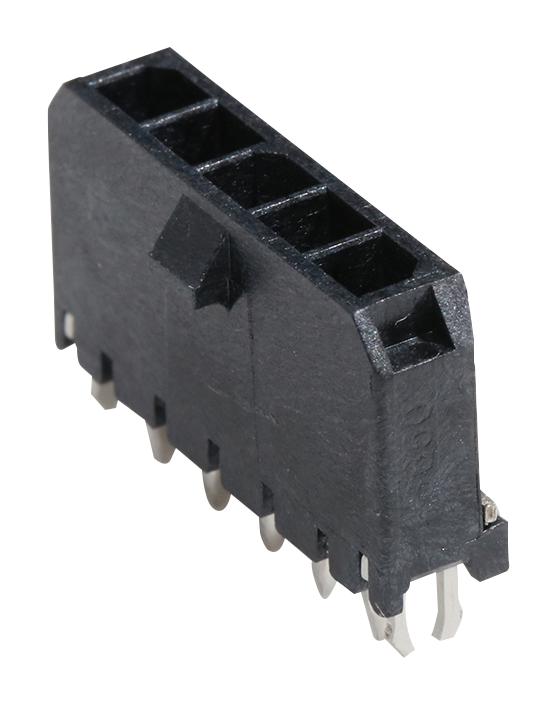

MOLEX 436500518 Micro-Fit 3.0 Header
The MOLEX 43650-0518 is a Micro-Fit 3.0 vertical header, part of the Micro-Fit 3.0 Connector System family. This header is designed for robust wire-to-board connections in power applications. It boasts a 3.00mm pitch, a single row configuration with 5 circuits, and incorporates a PCB press-fit metal retention clip for secure mounting. The header is finished with tin plating for enhanced conductivity and is Glow-Wire Capable, meeting stringent safety standards. Its robust design and reliable performance make it suitable for a wide range of industrial and commercial applications.
MOLEX 436500518 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Pitch: 3.00mm
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Resin: High Temperature Thermoplastic
- Plating - Mating: Tin
- Plating - Termination: Tin
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40° to +105°C
- Mates With: Micro-Fit 3.0 Receptacle Housing, Micro-Fit 3.0 TPA Receptacle Housing
Buy the 43650-0518 MOLEX Micro-Fit 3.0 Header | myMectronic
Purchase the MOLEX 43650-0518 Micro-Fit 3.0 Header securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 436500518?
You can click on the BUY or RFQ button to purchase 436500518 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500518?
You can download the 436500518 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500518?
MOLEX
