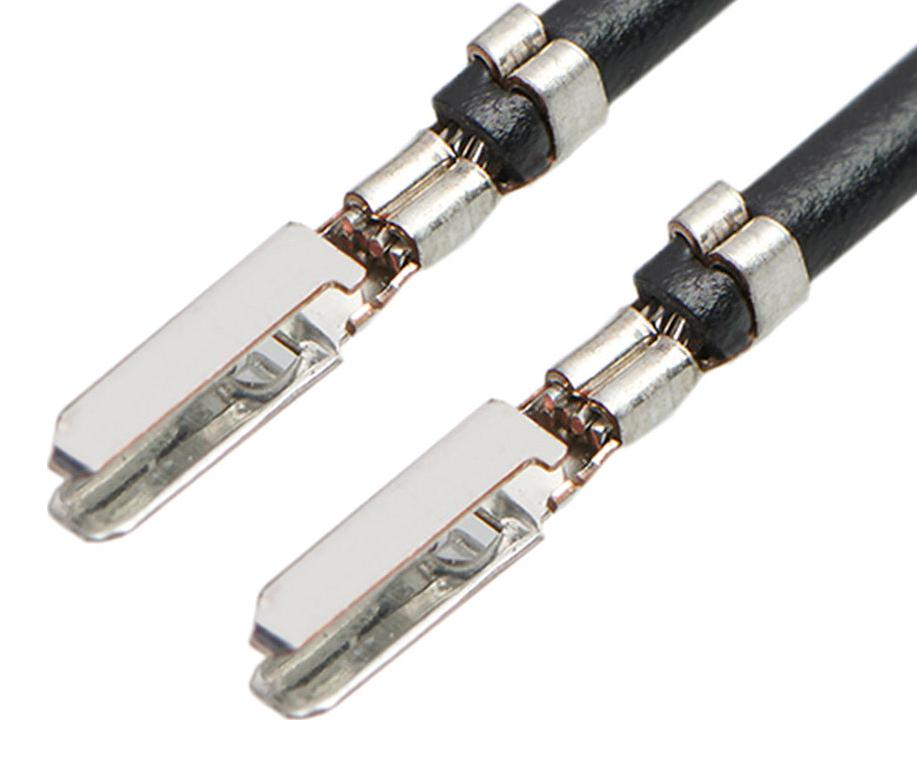

MOLEX 2157101123 Clik-Mate Pre-Crimped Lead
The MOLEX 215710-1123 is a pre-crimped lead assembly within the CLIK-Mate series, ideal for signal transmission in wire-to-board applications. This assembly provides a convenient, ready-to-use solution, eliminating the need for on-site crimping. It connects CLIK-Mate male connectors, offering a secure and reliable connection. The tin plating on both mating and termination surfaces ensures excellent conductivity and corrosion resistance. Suitable for applications requiring a 24 AWG wire gauge and a 225mm lead length, this component simplifies assembly processes and ensures consistent performance.
MOLEX 2157101123 Clik-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 0.797/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_maximum_per_contact: 2.0A
- voltage_maximum: 100V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- use_with: CLIK-Mate Housing 502578, 503149
- sales_drawing: 2157101121-000
