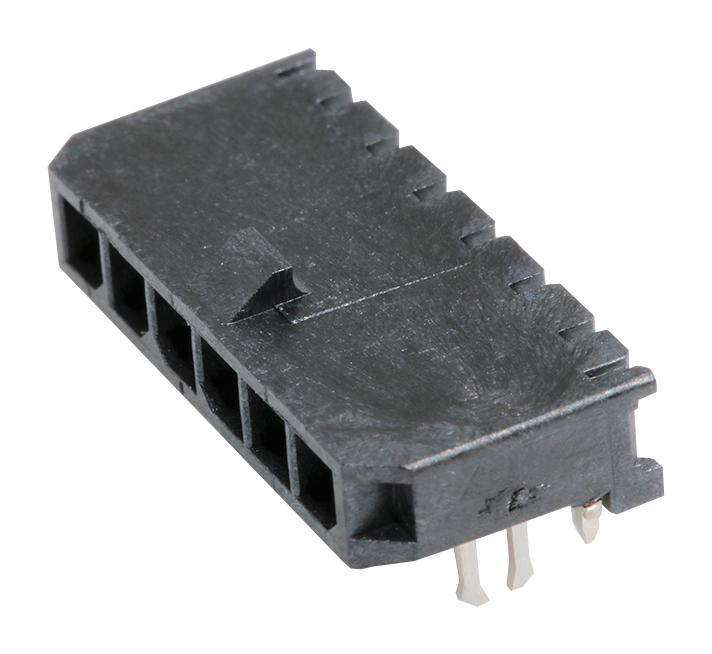

MOLEX 436500603 Micro-Fit 3.0 Header
The MOLEX 43650-0603 is a Micro-Fit 3.0 right-angle header, part of the 43650 product family. This connector is designed for secure wire-to-board connections and features a 3.00mm pitch and 6 circuits. Constructed with a black, high-temperature thermoplastic resin and tin-plated contacts, it offers excellent durability and performance. The header is RoHS compliant, glow-wire capable, and suitable for applications requiring resistance to heat and fire, commonly found in household and similar electrical appliances. It is compatible with Micro-Fit 3.0 receptacle housings and offers a reliable connection for various electronic devices.
MOLEX 436500603 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 6 Circuits, with PCB Press-fit Metal Retention Clip, Tin, Glow-Wire Capable, Black
- Application: Power, Wire-to-Board
- Material - Resin: High Temperature Thermoplastic
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Durability (mating cycles max): 30
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40° to +105°C
- Mates With: Micro-Fit 3.0 Receptacle Housing, Micro-Fit 3.0 TPA Receptacle Housing
