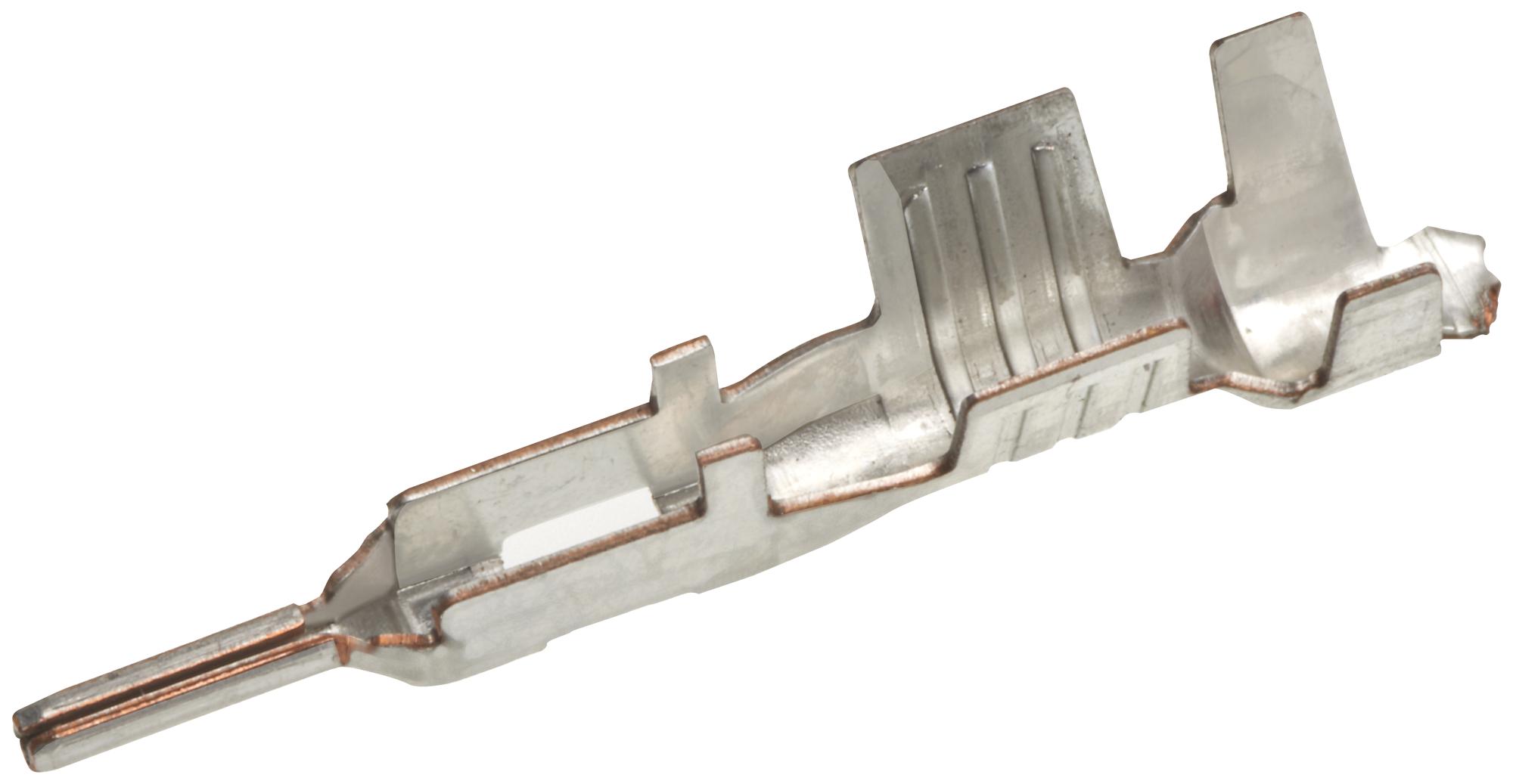

MOLEX 1054180313 Mega-Fit Power Connector
Mega-Fit Power Connectors are high-current, power-dense solutions designed for efficient and secure electrical connections in various applications. They deliver 25.0A per circuit through fully protected header pins and receptacle terminals, ensuring reliable power transfer. Features include positive locking housing, tin-plated contacts for durability, and polarized keying options to prevent mis-mating. Suitable for hot-plugging up to 30 cycles at 48V, these connectors support system flexibility with dual and single-row configurations, making them ideal for industrial machinery, telecommunications, and consumer electronics requiring high current and secure connections.
MOLEX 1054180313 Mega-Fit Power Connector Specifications:
- Voltage: 600V
- Current: 25.0A
- Material: High-conductivity copper with gold or tin plating
- Housing: UL 94 V-0, Glow Wire compliant
- Contact Resistance: 6 millichms
- Durability: Min. 2 Megohms resistance change after multiple mating cycles
- Operating Temperature: -40°C to +150°C
- PCB Thickness: 1.60mm to 2.40mm
- Mating Force: Max 6.8N (tin plated), 6.0N (gold plated)
- Unmating Force: Max 6.5N (tin plated), 5.6N (gold plated)
- Header Pin Retention Force: Min 89N per pin for vertical headers
- Insulation Resistance: Min 1,000 Megohms
- Dielectric Withstanding Voltage: No Breakdown
- RoHS Compliant, Halogen-Free options
- Packaging: Bag, Reel, Tray
Buy the Molex Series Mega-Fit Power Connectors: 1054180313
Purchase the Mega-Fit Power Connector today to ensure reliable, high-current connections for your industrial, telecom, or consumer electronics projects. Designed for ease of assembly, these connectors support hot-plugging up to 30 cycles at 48V and deliver 25A per circuit, making them ideal for demanding applications. With robust construction, polarization features, and compliance with RoHS standards, these connectors provide long-term performance and safety. Trusted by professionals for secure, high-current electrical distribution—order now to experience quality and precision in every connection.
Order your Molex Series Mega-Fit Power Connector 1054180313 today and give your projects the dependable power and secure connections they deserve.
Frequently Asked Questions
Where can I buy MOLEX 1054180313?
You can click on the BUY or RFQ button to purchase 1054180313 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054180313?
You can download the 1054180313 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054180313?
MOLEX
