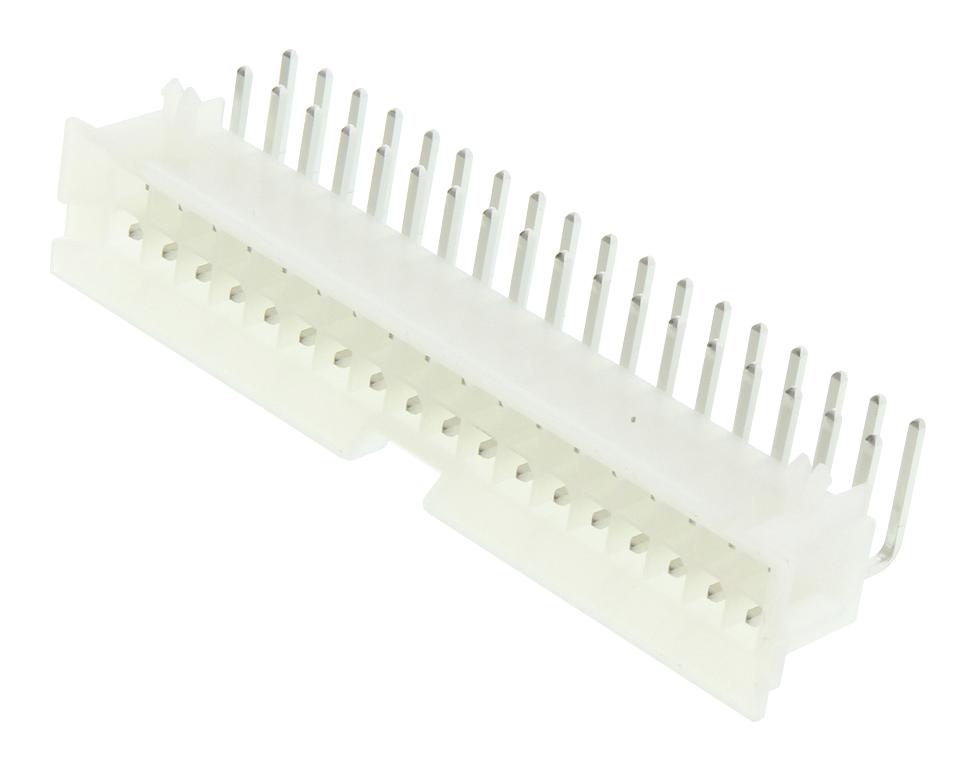

MOLEX 437590001 PCB Header
The Mini-Fit BMI Header is a durable, high-current connector designed for PCB-to-board, wire-to-board, and power applications. Featuring a 4.20mm pitch, dual-row, right-angle configuration, and a snap-in plastic peg, it offers reliable locking and polarization to prevent mismating. Constructed from PA polyamide nylon 6/6 with tin plating, it supports up to 13A per circuit at 600V, with a temperature range of -40°C to +105°C. Suitable for high-reliability electrical systems, it ensures secure connections and longevity in industrial and electronic applications.
MOLEX 437590001 PCB Header Specifications:
- Pitch: 4.20mm
- Number of Circuits: 36
- Material: PA Polyamide Nylon 6/6
- Plating: Tin
- Color - Resin: Natural
- Max Current per Circuit: 13A
- Max Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Orientation: Right Angle
- Termination Interface: Through Hole
- Locking: Snap-in Plastic Peg
- Flammability: UL 94V-2
- PCB Tail Length: 3.30mm
- PCB Retention: Yes
- Polarization: Yes
- Shrouded: Partial
- Surface Mount Compatible: No
- Packaging: Tray
- Durability (Mating Cycles Max): Not specified
- Certifications: CSA, UL
Buy the Molex 0437590001 – Reliable PCB Connectors for Industrial Applications
Enhance your electronic and industrial projects with the Molex PCB Header featuring a 4.20mm pitch, dual-row configuration, and reliable snap-in locking for secure connections. Constructed from durable nylon with tin plating, it supports up to 13A and 600V for high-current applications. Operating efficiently from -40°C to +105°C, its polarized, right-angle design ensures easy installation and secure mating. Suitable for PCB assembly, power distribution, and automation systems, it guarantees long-term performance and safety in demanding environments.
Buy Molex 0437590001 now and experience unmatched reliability and performance with durable, high-current PCB headers suitable for industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 437590001?
You can click on the BUY or RFQ button to purchase 437590001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 437590001?
You can download the 437590001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 437590001?
MOLEX
