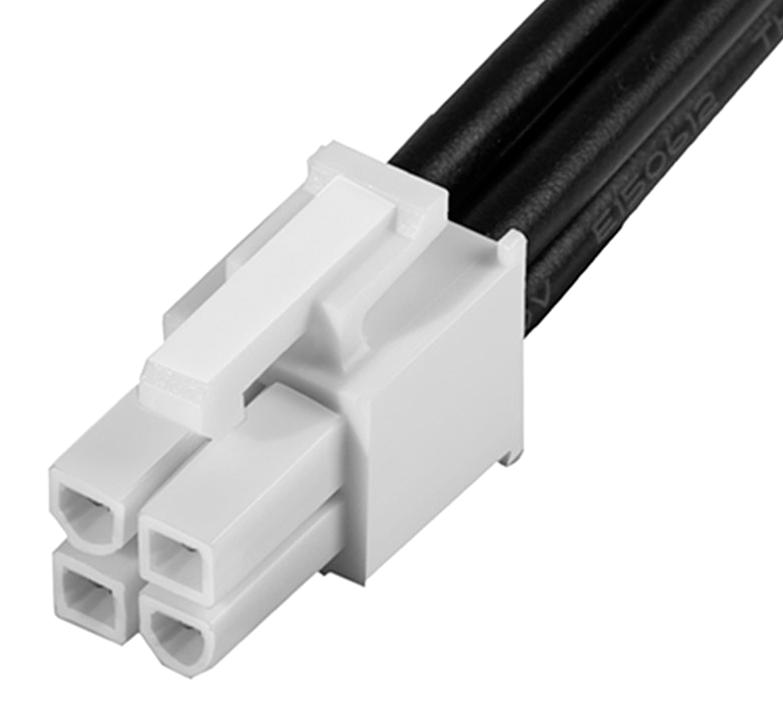

MOLEX 2153271043 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1043 is a Mini-Fit Jr. male-to-male off-the-shelf cable assembly designed for power and wire-to-wire applications. This assembly boasts a dual-row configuration, 4 circuits, and a 600mm length, making it suitable for various industrial and commercial applications. The tin plating on both mating and termination interfaces ensures reliable electrical contact. Constructed with brass and nylon materials, this cable assembly offers durability and performance. It is RoHS compliant and supports a maximum current of 9.0A at 600V, making it a versatile solution for power distribution and connectivity.
MOLEX 2153271043 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 600.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 57.131
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590292
- material_info: Not Contained Per - D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 5557
- sales_drawing: 2153271041-000
