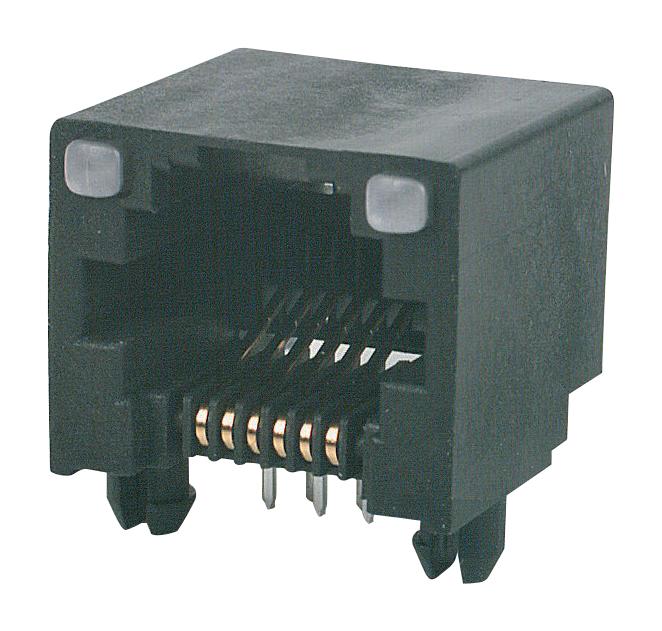

MOLEX 438600003 Ethernet Modular Jack
This high-performance modular jack offers a right-angle, low-profile design suitable for Power over Ethernet applications. Made with durable phosphor bronze and finished with gold plating, it ensures reliable electrical connections with up to 1.5A maximum current and 150V AC voltage capacity. The jack is resistant to flammability and complies with RoHS standards, making it ideal for professional networking and industrial environments. Its compact 13.21mm height and 6/4 port configuration allow easy integration into various electronic and networking systems, providing excellent durability for up to 500 mating cycles.
MOLEX 438600003 Ethernet Modular Jack Specifications:
- Product Family: Modular Jacks/Plugs
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Port Configuration: 6/4
- Number of Positions / Loaded Contacts: 6/4
- Color - Resin: Black
- Boot Color: N/A
- Jack Height: 13.21mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 500
- Flammability: UL 94V-0
- Voltage - Maximum: 150V AC (RMS)
- Current - Maximum per Contact: 1.5A
- Connection Style: Through Hole
- Operating Temperature Range: -40°C to +85°C
- Orientation: Right Angle (Side Entry)
- PCB Thickness - Recommended: 1.60mm
- Wire/Cable Type: Tube
- Waterproof / Dustproof: No
Buy the Molex Series 43860 Modular Jack: 438600003
Enhance your networking projects with the Molex Series 43860 Ethernet modular jack. Designed for durability and high performance, it features gold-plated contacts, a compact right-angle design, and a robust thermoplastic body. Ideal for industrial and professional environments, this jack offers up to 500 mating cycles, supporting 150V AC and 1.5A current per contact. Its RoHS compliance ensures environmentally safe installation. Order online now to get this reliable, high-quality component shipped quickly and securely, perfect for various electronic and networking applications.
Order your Molex Series 43860 modular jack today and secure reliable, high-quality connections for your networking needs with this durable, low-profile Ethernet component.
Frequently Asked Questions
Where can I buy MOLEX 438600003?
You can click on the BUY or RFQ button to purchase 438600003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 438600003?
You can download the 438600003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 438600003?
MOLEX
