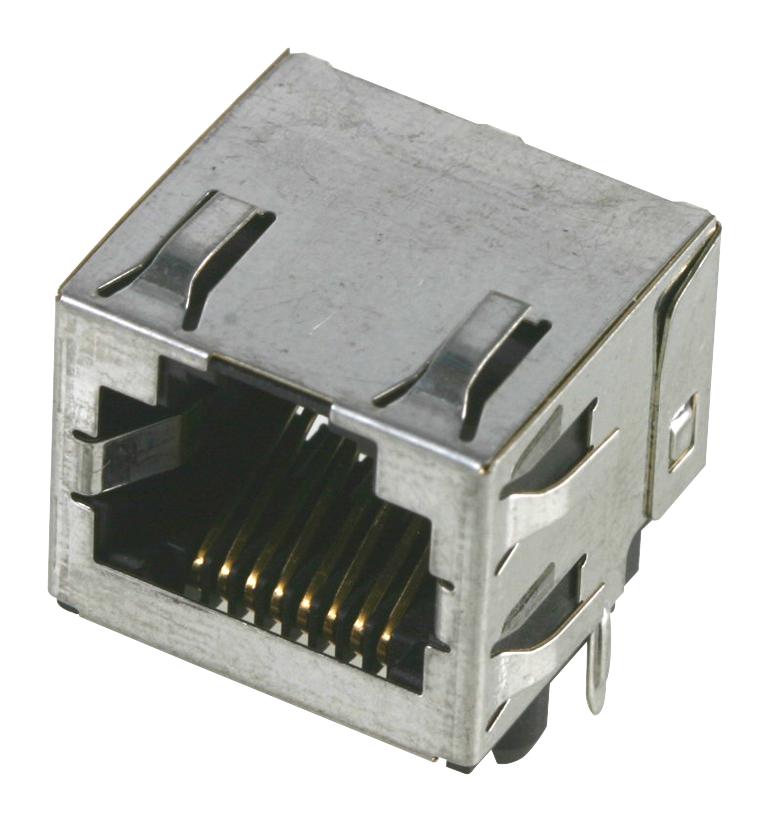

MOLEX 438600006 Modular Jack
The Modular Jack with part number 438600006 is a compact, shielded, right-angle PCB jack designed for Power over Ethernet applications. It features a low-profile, inverted design with panel grounding tabs, ensuring reliable connections in networking equipment. Made from durable thermoplastic with gold-plated brass and phosphor bronze contacts, it supports up to 1.5A current and 150V AC. Its robust construction allows up to 500 mating cycles, conforming to UL and CSA standards. Suitable for high-density networking, it provides a secure, noise-resistant interface in harsh environments, ensuring dependable performance in industrial and data communication setups.
MOLEX 438600006 Modular Jack Specifications:
- Product Family: Modular Jacks/Plugs
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Port Configuration: 6/4
- Port Count: 1
- Color - Resin: Black
- Durability (mating cycles max): 500
- Flammability: UL 94V-0
- Inverted / Top Latch: Yes
- Jack Height: 13.53mm
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High-Temperature Thermoplastic
- Net Weight: 3.672g
- Orientation: Right Angle (Side Entry)
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Panel Mount: With Flange
- Pitch - Mating Interface: 1.02mm
- Pitch - Termination Interface: 1.02mm
- Plating min - Mating: 1.270μm
- Plating min - Termination: 2.540μm
- Port Configuration: 6/4
- Positions / Loaded Contacts: 4
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40°C to +85°C
- Termination Interface: Style: Through Hole
- Waterproof / Dustproof: No
- Wire/Cable Type: N/A
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 150V AC (RMS)
- Grounding to PCB: Yes
- Grounding to Panel: Yes
- Shielded: Yes
Buy the Molex 438600006 – Reliable Modular Jack for Industrial Applications
Secure your high-performance networking setup by ordering the Molex modular jack series today. Designed for industrial and data communication environments, this shielded, right-angle jack features durable gold-plated contacts, supporting up to 1.5A and 150V AC. Its compact, low-profile, and panel-mount design ensures reliable connections with up to 500 mating cycles. Perfect for PoE applications, it offers excellent noise resistance and high durability, making it an ideal choice for harsh environments requiring dependable, high-density connectivity solutions.
Order your Molex 438600006 series modular jack today and give your networking projects the dependable quality they deserve.
