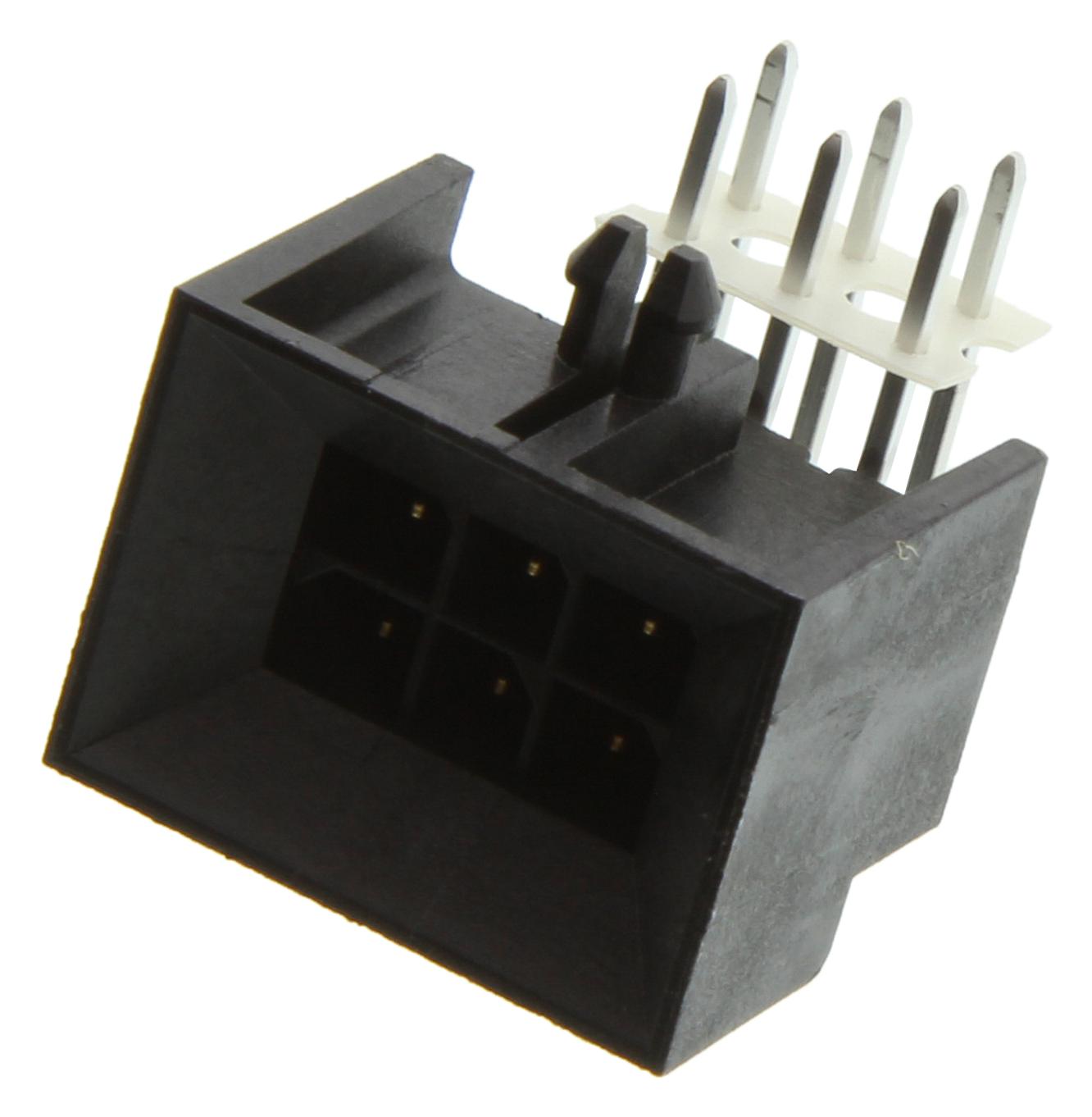

MOLEX 444280602 Micro-Fit Connector
The Micro-Fit 3.0 Connector System offers a versatile solution for high-density power and wire-to-board applications, supporting up to 8.5A per contact at 600V. Its surface-mount compatible design includes a dual-row, right-angle configuration with a snap-in PCB lock, suitable for demanding environments with operating temperatures from -40°C to +105°C. Crafted from high-temperature thermoplastic with gold-plated brass contacts, it ensures excellent electrical performance, durability, and RoHS compliance. Ideal for assembly-line automation, power distribution, and electronic device manufacturing, the connector provides secure mating, easy installation, and high cycle life with up to 30 mating cycles.
MOLEX 444280602 Micro-Fit Connector Specifications:
- Number of Circuits: 6
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Maximum Current per Contact: 8.5A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Contact Style: Square Pin
- Orientation: Right Angle
- PC Tail Length: 3.50mm
- PCB Thickness - Recommended: 1.60mm
- Pin Pitch - Mating Interface: 3.00mm
- Durability (Mating Cycles): 30
- Flammability: UL 94V-0
- RoHS, REACH, Halogen-Free: Compliant
Buy the Molex Series Micro-Fit 3.0 Connector: 444280602
Discover the Molex Micro-Fit Connector suitable for high-current, power, and wire-to-board applications. Its dual-row, right-angle design supports 8.5A at 600V, making it ideal for demanding environments. Constructed from durable high-temperature thermoplastic and gold-plated brass contacts, it ensures excellent electrical performance, corrosion resistance, and long-term reliability. With RoHS compliance and a temperature range from -40°C to +105°C, this connector offers secure mating, easy installation, and up to 30 mating cycles. Purchase online today for quality and performance in your electronic assemblies.
Buy Molex 444280602 now and experience unmatched reliability and high current capacity for your power and electronics connections.
Frequently Asked Questions
Where can I buy MOLEX 444280602?
You can click on the BUY or RFQ button to purchase 444280602 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 444280602?
You can download the 444280602 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 444280602?
MOLEX
