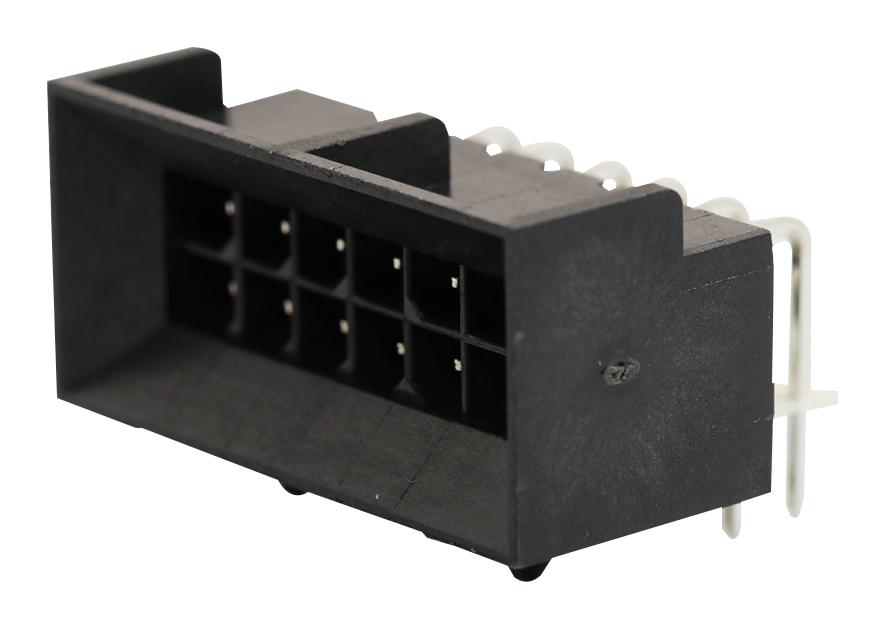

MOLEX 444281201 Micro-Fit Connector
The Micro-Fit BMI Header is a high-temperature, surface-mount compatible, dual-row connector designed for PCB applications. Featuring a right-angle design with snap-in plastic peg PCB lock, it supports 12 circuits with tin plating for reliable electrical contact. Suitable for board-to-board, power, and wire-to-board connections, it offers a maximum current of 8.5A per contact and a voltage rating up to 600V. Made from high-temperature thermoplastic with brass material, it withstands temperatures from -40°C to +105°C, ensuring durability in demanding environments.
MOLEX 444281201 Micro-Fit Connector Specifications:
- Number of Circuits: 12
- Orientation: Right Angle
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Not specified
- Net Weight: 2.738 grams
- PCB Thickness - Recommended: 1.60mm
- PC Tail Length: 3.50mm
- Pitch - Mating Interface: 3.00mm
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Durability (mating cycles max): Not specified
- Shrouded: No
- Stackable: No
- Surface Mount Compatible: Yes
- Process Temperature Max.: 260°C
- Termination Interface: Through Hole
Buy the Molex Series Micro-Fit Connector: 444281201
Order the Molex Micro-Fit Connector today for your PCB and power wiring needs. This reliable right-angle connector features 12 circuits, tin plating, and high-temperature thermoplastic construction, ensuring performance up to 105°C. Its design includes a snap-in lock for secure connections and a current rating of 8.5A per contact, making it ideal for power and board-to-board applications. Available for online purchase now, ensuring quick delivery for your manufacturing or repair projects.
Get Molex 444281201 today—built for power, durability, and reliable PCB connections in high-temperature applications.
Frequently Asked Questions
Where can I buy MOLEX 444281201?
You can click on the BUY or RFQ button to purchase 444281201 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 444281201?
You can download the 444281201 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 444281201?
MOLEX
