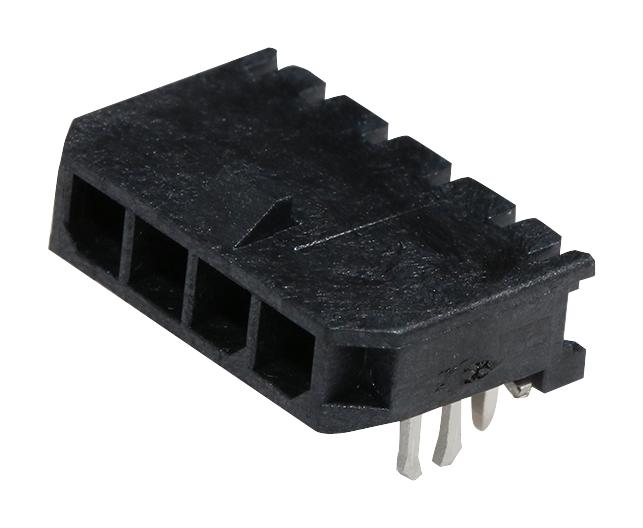

MOLEX 436500410 Micro-Fit 3.0 Header
The MOLEX 43650-0410 is a Micro-Fit 3.0 right-angle header, part of the 43650 series, designed for reliable power and wire-to-board connections. This header features a 3.00mm pitch and accommodates 4 circuits, making it suitable for a variety of applications. The integrated PCB press-fit metal retention clip ensures a secure and stable connection to the printed circuit board. Constructed with high-temperature thermoplastic and gold/tin plating, this connector offers excellent durability and performance. It is Glow-Wire Capable and compliant with RoHS standards, ensuring suitability for a wide range of industrial and consumer applications. Customers should perform their own suitability testing to ensure optimal performance in their specific application.
MOLEX 436500410 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Resin: High Temperature Thermoplastic
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Mates With: Micro-Fit 3.0 Receptacle Housing, Micro-Fit 3.0 TPA Receptacle Housing
