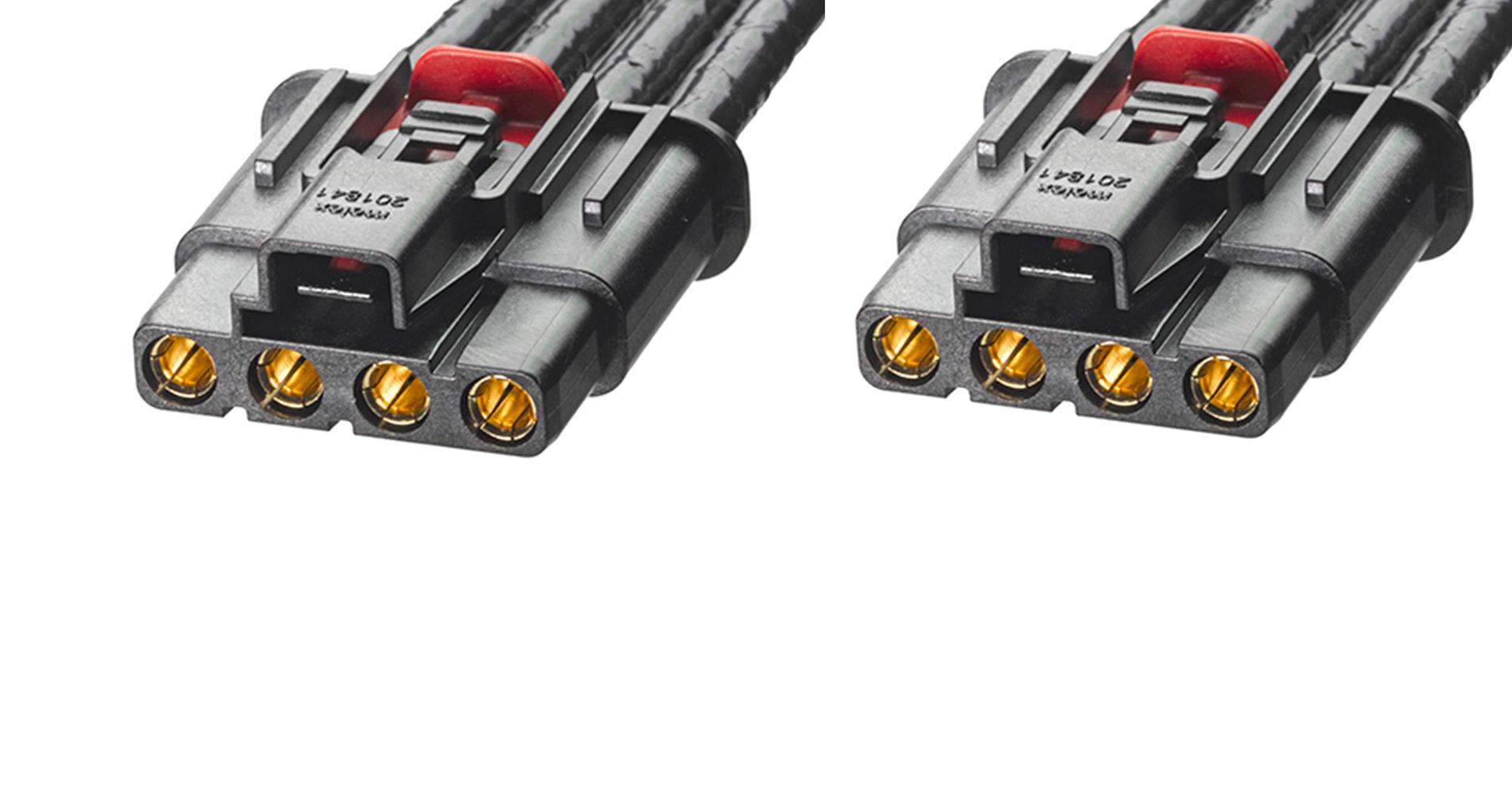

MOLEX 451410401 Power Connector Assembly
The MultiCat power connector cable assembly by Molex offers a high-reliability power connection solution for industrial applications. Featuring precision-machined contacts, this female-to-female overmolded cable assembly provides a 300mm length, 8 AWG wire size, and a 4-circuit configuration. Suitable for power, wire-to-wire, or wire-to-board connections, it supports up to 40A current and 1000V AC voltage rating. Constructed with copper alloy and plated with gold over nickel phosphorus, it ensures excellent conductivity and corrosion resistance. Ideal for high-power, durable connectivity in demanding environments.
MOLEX 451410401 Power Connector Assembly Specifications:
- Cable Length: 300.00mm
- Number of Circuits: 4
- Wire Size: 8 AWG
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel Phosphorus
- Material - Plating Termination: Gold over Nickel Phosphorus
- Material - Resin: PEI
- Current - Maximum per Contact: 40.0A
- Voltage - Maximum: 1000V AC
- Wire Insulation Diameter: 4.03mm-5.84mm
- Lock to Mating Part: Yes
- Number of Rows: 1
- Pitch - Mating Interface: 0.200um
- Net Weight: 155.300g
- Reference Drawing Number: 740mm
- UL Recognition: UL 10669
- RoHS Compliance: Yes
- REACH SVHC Contained: No
- Halogen-Free: No
Buy the Molex 0451410401 – Reliable Power Connectors for Industrial Applications
Enhance your industrial power systems with Molex's Power Connector Assembly. This high-reliability, overmolded cable features 8 AWG wire, 4 circuits, and a 300mm length. Designed for wire-to-wire and wire-to-board applications, it supports up to 40A current and 1000V AC voltage. Made with corrosion-resistant materials, gold-plated contacts ensure optimal conductivity. Its robust construction and sealed design make it ideal for demanding industrial environments, ensuring longevity, safety, and excellent electrical performance for various power distribution needs.
Get Molex 0451410401 today—built for high power, durability, and reliable industrial connectivity in demanding environments.
