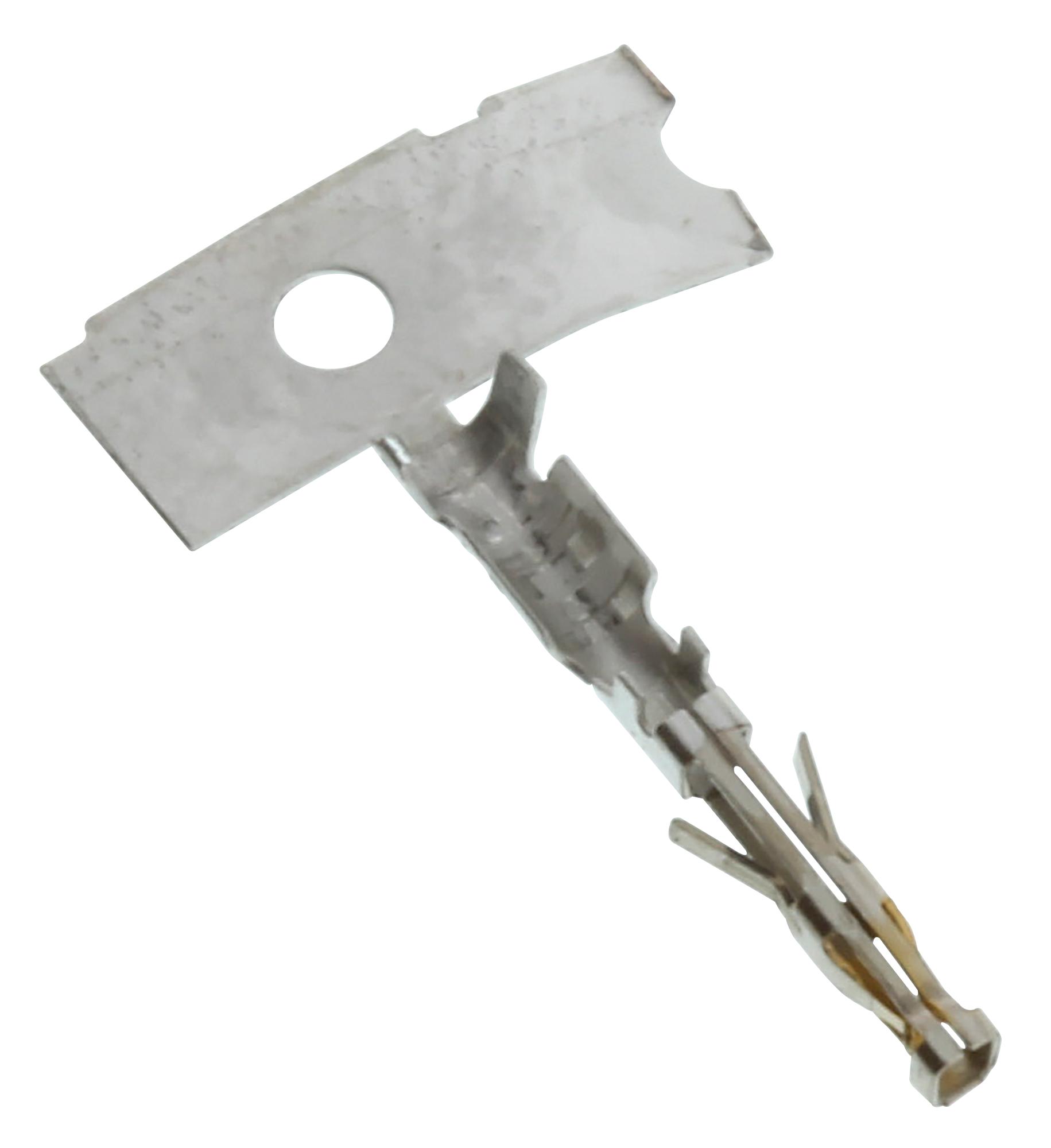

MOLEX 462350003 Micro-Fit Crimp Terminal
The Micro-Fit RMF Reduced Mating Force female crimp terminal is crafted from copper-zinc-tin with gold plating and nickel, designed for 26-30 AWG wires. It offers up to 50% reduced mating force, ensuring easier connection and disconnection in power and wire-to-board applications. Suitable for high-density connections, it features a crimp or compression termination interface, with a maximum wire insulation diameter of 1.27mm. The terminal supports a maximum current of 5.0A and is RoHS compliant, making it ideal for environmentally conscious manufacturing and reliable electrical performance.
MOLEX 462350003 Micro-Fit Crimp Terminal Specifications:
- Material - Metal: Copper-Zinc-Tin
- Plating - Mating: Gold
- Plating - Termination: Nickel
- Wire Size: 26-30 AWG
- Wire Insulation Diameter: 1.27mm max.
- Durability: Up to 50 mating cycles
- Current - Max: 5.0A
- Net Weight: 0.046 grams
- Packaging: Reel
- Operating Temperature: Not specified
- RoHS Compliance: Yes
- Process Capability: Solder process, lead-free
- Application: Power, Wire-to-Board, Wire-to-Wire
- Crimp or Compression Termination Style
- Dimensions: Not specified
Buy the Buy Molex Micro-Fit 3.0 Part Number 0462350003 Online
Purchase the Molex Micro-Fit Crimp Terminal online for high-quality, environmentally friendly power wiring solutions. Designed for 26-30 AWG wires with reduced mating force, this terminal features gold over nickel plating for superior conductivity and corrosion resistance. Ideal for power, wire-to-board, and wire-to-wire connections, it supports up to 5.0A current, ensuring reliable electrical performance. RoHS compliant and packaged on reels for easy handling, this terminal enhances your projects with durability and ease of installation, making it the ideal choice for professional assembly.
Buy Molex 0462350003 now and experience unmatched reliability and performance in power and wiring applications with reduced mating force female crimps.
Frequently Asked Questions
Where can I buy MOLEX 462350003?
You can click on the BUY or RFQ button to purchase 462350003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 462350003?
You can download the 462350003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 462350003?
MOLEX
