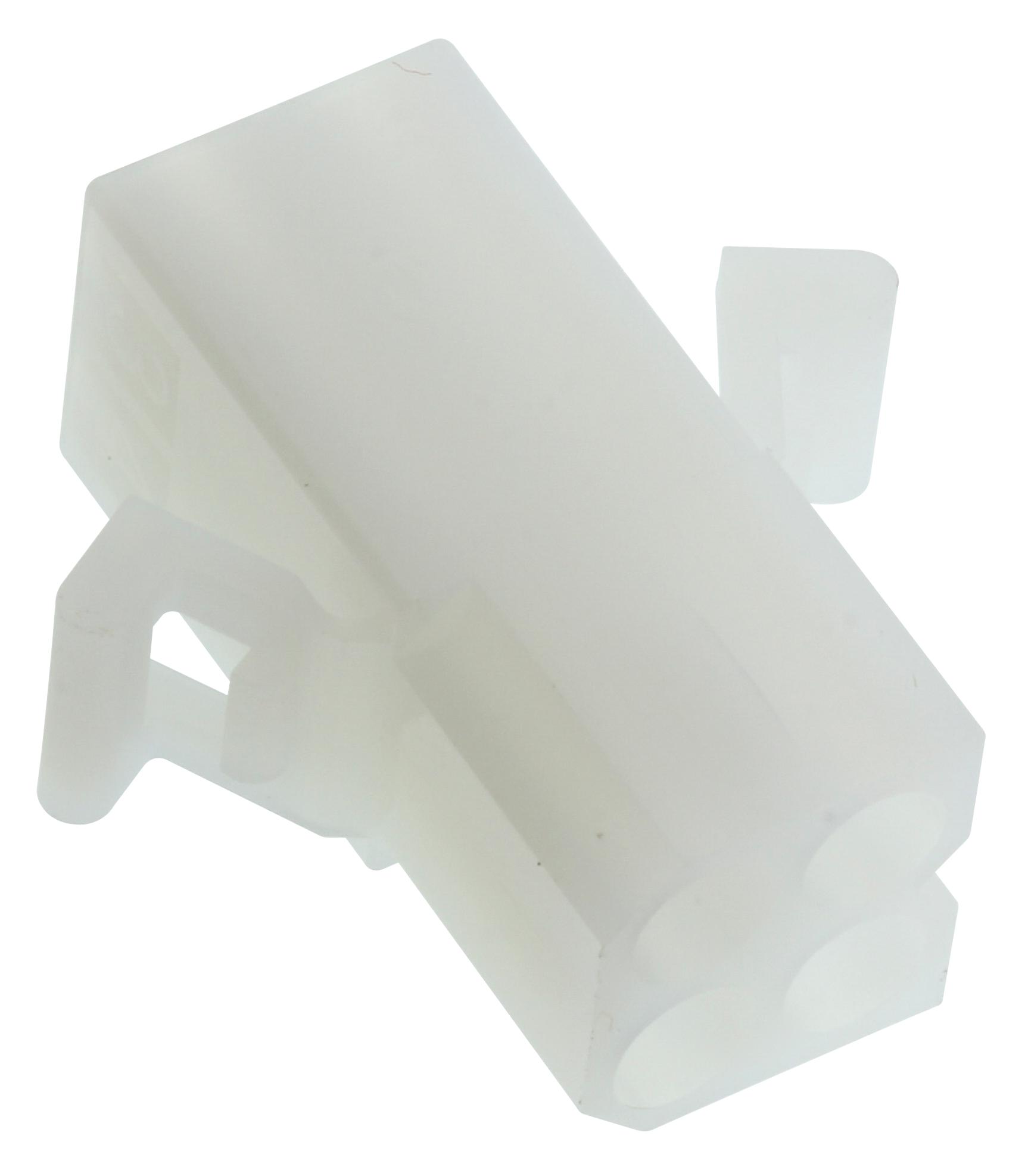

MOLEX 469990653 Standard Pin and Socket Housing
The MOLEX 46999-0653 is a robust and reliable pin and socket receptacle housing suitable for various wire-to-wire power applications. Its design incorporates 4 circuits arranged in a dual-row configuration, providing ample connection points. The pre-bent mounting ears simplify the installation process, ensuring secure attachment to panels or enclosures. Constructed from durable nylon resin, this housing offers excellent insulation and mechanical strength. It is compatible with 42477 or 42478 terminals and can achieve a maximum current of 14.0A when used with those terminals. The housing operates effectively within a temperature range of -40°C to +105°C, making it suitable for demanding environments.
MOLEX 469990653 Standard Pin and Socket Housing Specifications:
- overview: Standard .093" Pin and Socket Connectors
- diameter: 2.36mm
- circuits_maximum: 4
- color_resin: Natural
- gender: Receptacle
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight: 2.235/g
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: Yes
- pitch_mating_interface: 5.03mm
- pitch_termination_interface: 5.03mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40°C to +105°C
- current_maximum_per_contact: 11.0A
- lead_free_process_capability: N/A
- engineering_number: 2163-R2
- maximum_current: 14.0A
- halogen_free_status: Low-Halogen
