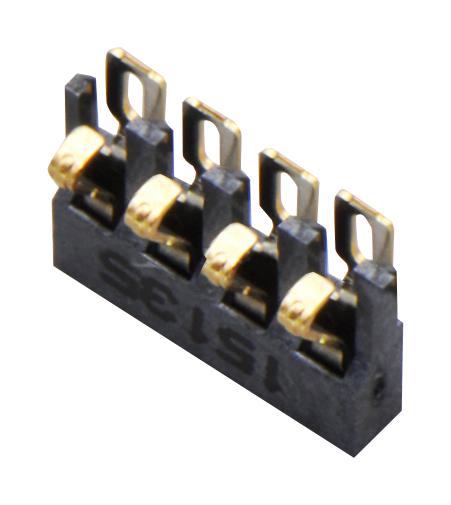

MOLEX 472861001 Battery Connector
This 2.00mm pitch battery connector features a surface mount design with a contact width of 0.70mm, a working height of 1.60mm, and four circuits. It includes a dimple on the contact area for secure mating and is lead-free, RoHS and REACH compliant. Suitable for battery applications, it supports 1.0A current and 200V, with a maximum of 10,000 mating cycles. The connector is designed for reliable performance in demanding environments, with surface mount technology and gold plating for enhanced durability and corrosion resistance.
MOLEX 472861001 Battery Connector Specifications:
- Pitch - Mating Interface: 2.00mm
- Pitch - Termination Interface: 2.00mm
- Contact Material: Gold plating
- Contact Width: 0.70mm
- Working Height: 1.60mm
- Number of Circuits: 4
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 200V
- Durability (mating cycles max): 10,000
- Temperature Range - Operating: -20°C to +70°C
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Process Temperature max.: 250°C
- Solder Process Duration at Max Temperature: 30 seconds
- RoHS and REACH compliant, lead-free, halogen-free
- Surface Mount technology
- Net Weight: 0.139 grams
- Packaging: Embossed tape on reel
- Guide to Mating Part: Dimple on contact area
- Shrouded: No
- Stackable: No
Buy the Molex 47286101 – Reliable Battery Connectors for Industrial Applications
Purchase the Molex battery connector online today for dependable power connections in industrial and electronic applications. With a 2.00mm pitch, four circuits, and gold-plated contacts, this surface mount connector ensures secure, corrosion-resistant connections. Its lead-free design conforms to RoHS and REACH standards, supporting up to 1A current and 200V voltage ratings. The connector's durability allows for up to 10,000 mating cycles, making it ideal for demanding environments. Order now to ensure reliable power distribution in your projects.
Get Molex 47286101 today—built for precision and long-lasting durability in battery and electronics integration.
Frequently Asked Questions
Where can I buy MOLEX 472861001?
You can click on the BUY or RFQ button to purchase 472861001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 472861001?
You can download the 472861001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 472861001?
MOLEX
