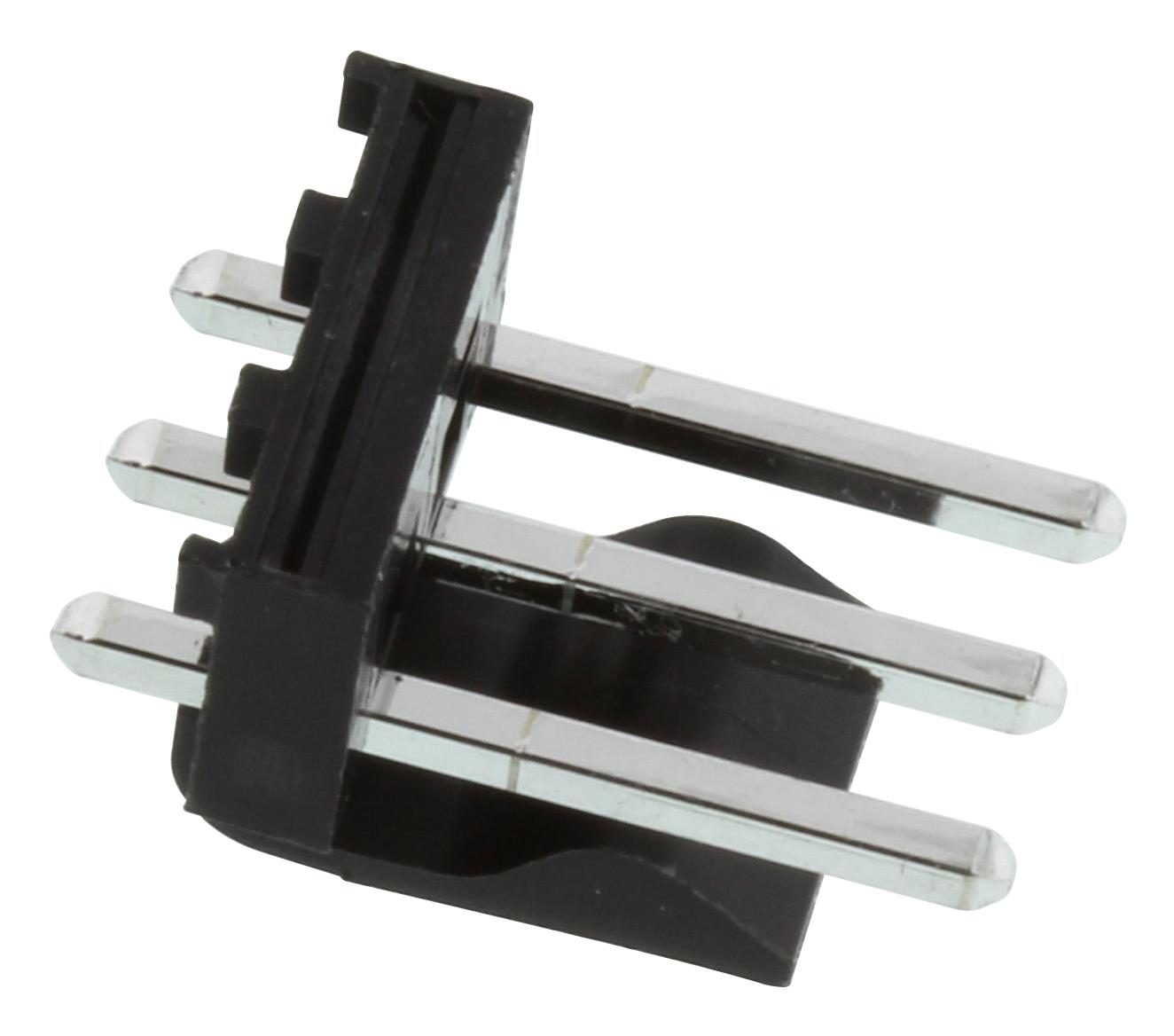

MOLEX 1718560008 KK Interconnect System
The MOLEX 171856-0008 is a robust vertical header within the KK Interconnect System family. This component is designed for a variety of applications including board-to-board connections, power distribution, and signal transmission. It boasts a 2.54mm pitch, ensuring compatibility with standard spacing, and features a matte tin plating for reliable contact. The header is constructed with a high-temperature thermoplastic resin and brass material, offering durability and performance in demanding environments. Its vertical orientation and friction lock mechanism provide secure and stable connections, making it suitable for a wide range of industrial and commercial applications.
MOLEX 1718560008 KK Interconnect System Specifications:
- overview: KK Interconnect System - Molex
- description: 2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 12.95mm, Bag, 8 Circuits
- product_family_series: 171856
- application: Board-to-Board, Power, Signal, Wire-to-Board
- comments: See Product Specification for maximum current rating by AWG. See Product Specification for operating temperature range by material.
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Black
- durability_mating_cycles_max: 25
- first_mate_last_break: No
- flammability: 94V-1
- glow_wire_capable: No
- guide_to_mating_part: None
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Matte Tin
- material_plating_termination: Matte Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 0.913
- number_of_rows: 1
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Bag
- pitch_mating_interface_mm: 2.54
- plating_min_mating_um: 1.524
- plating_min_termination_um: 1.524
- polarized_to_mating_part: Yes
- current_max_per_contact_a: 4.0
- voltage_max_v: 500
- duration_at_max_process_temp_seconds: 030
- lead_free_process_capability: SMC&WAVE
- max_cycles_at_max_process_temp: 003
- process_temperature_max_c: 260
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 4455, 2695, 6471
- shrouded_partial_stackable: No
- surface_mount_compatible_smc: Yes
- temperature_range_operating_c: -40° to +105°C, -40° to +80°C
