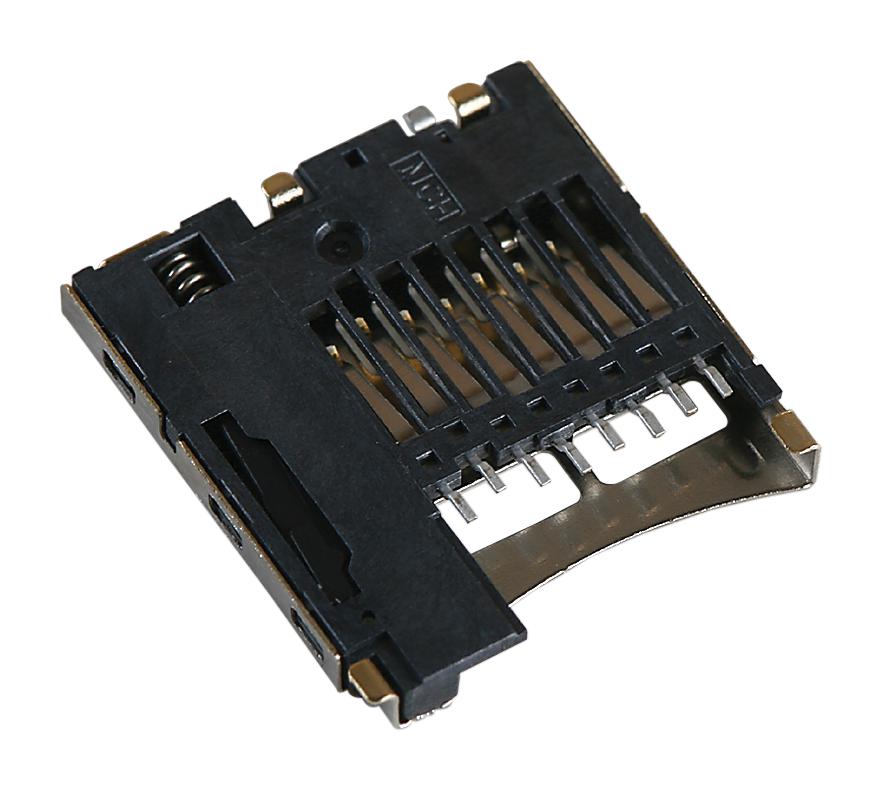

MOLEX 473521001 microSD Card Connector
The microSD Card Connector is a compact, high-reliability push-push type connector designed for microSD memory cards. It features a 1.10mm pitch, a VSS detect switch for card presence, and is lead-free and halogen-free, making it environmentally friendly. Its durable construction supports up to 5000 mating cycles, with a maximum operating voltage of 100V DC and a current capacity of 0.5A per contact. This connector is suitable for applications requiring robust, space-efficient memory card interfaces, combining corrosion-resistant gold-plated contacts with stainless steel shells for enhanced durability.
MOLEX 473521001 microSD Card Connector Specifications:
- Pitch: 1.10mm
- Number of Circuits: 8
- Current per Contact: 0.5A
- Voltage Max: 100V DC
- Durability: 5000 mating cycles
- Operating Temperature: -20°C to +85°C
- Material - Contact: Copper Alloy
- Material - Plating: Gold over Nickel
- Shell Material: Stainless Steel
- Resin: High Temperature Thermoplastic
- Circuit Configuration: Push-Push with VSS Detect Switch
- Packaging: Embossed Tape on Reel
- Solder Process: Reflow at max 250°C for 10 seconds
Buy the Molex Series 47352 MicroSD Card Connector: 473521001
Experience reliable and compact memory card interfaces with the microSD Card Connector from Molex. Its 1.10mm pitch, push-push operation, and VSS detect switch make it ideal for applications demanding durability and efficient space utilization. Crafted with high-quality materials, this connector supports up to 5000 mating cycles and operates safely within a -20°C to +85°C temperature range. Suitable for various electronic devices, it ensures secure connection, easy insertion, and long-lasting performance. Buy the Molex microSD Card Connector today for durable and efficient memory management.
Get Molex 473521001 today—designed for robust and space-efficient memory card connections.
