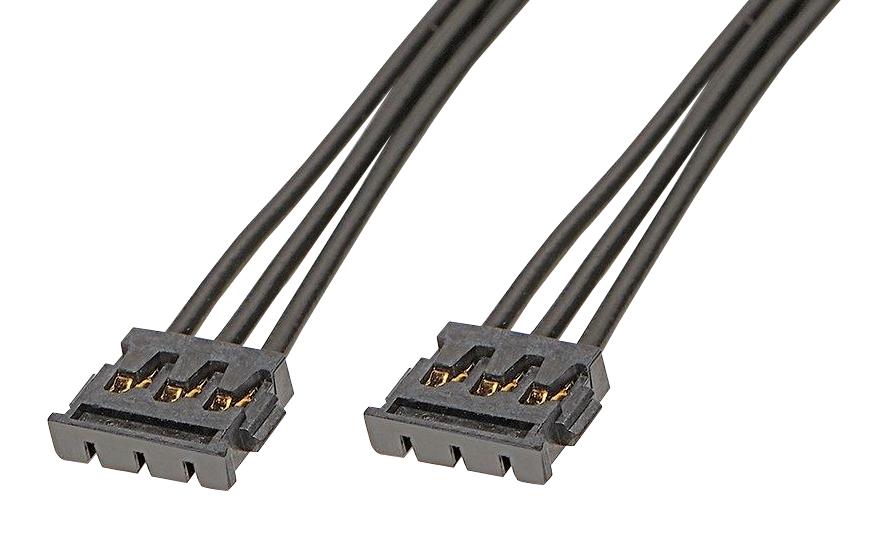

MOLEX 369200303 wire-to-wire connector
The Pico-EZmate-to-Pico-EZmate Off-the-Shelf Cable Assembly is designed with a 1.20mm pitch and features a single row configuration. It measures 300.00mm in length, incorporating three circuits for efficient connectivity. Crafted with a black liquid crystal polymer resin and gold-plated copper alloy contacts, it ensures reliable electrical performance. The connector has a female-female gender, with crimp or compression termination interface, suitable for 28 AWG wire size. Rated for a maximum of 50V AC/DC, it complies with RoHS, China RoHS, and ELV standards, making it ideal for compact, high-performance electronic applications.
MOLEX 369200303 wire-to-wire connector Specifications:
- Pitch: 1.20mm
- Number of Circuits: 3
- Cable Length: 300.00mm
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Liquid Crystal Polymer
- Wire Insulation Diameter: 0.100 inches
- Wire Size AWG: 28
- Current - Maximum per Contact: 50V AC/DC
- Voltage - Maximum: 50V AC/DC
- Packaging Type: Bag
- Assembly Configuration: Connector to Connector, Overmolded
- Lock to Mating Part: Yes
- Reference Drawing Number: 369200300-000
- RoHS, China RoHS, and ELV compliant, Halogen-Free compliant
- UL 1571
- Material Info: Copper Alloy, Gold Plated, Liquid Crystal Polymer
- Dimensions: 1.20mm pitch, 300mm length, 3 circuits, female-female connector
- Rated for high-reliability electronic systems
- Designed for high-density, compact electronic assemblies
Buy the Buy Molex Pico-EZmate-to-Pico-EZmate Part Number 0369200303 Online
Order the Molex Pico-EZmate-to-Pico-EZmate cable assembly online now. Designed with a 1.20mm pitch and 3 circuits, this high-quality connector ensures precise and durable electrical connections. Its compact 300mm length makes it ideal for space-constrained applications, while gold-plated contacts provide excellent conductivity and corrosion resistance. RoHS compliant and UL listed, this assembly guarantees safety, reliability, and long-lasting performance. Perfect for electronic devices requiring compact, high-performance connectors, especially in automation, communications, and consumer electronics.
Get Molex Pico-EZmate-to-Pico-EZmate 0369200303 today—built for high-density electronic connections and reliable performance.
Frequently Asked Questions
Where can I buy MOLEX 369200303?
You can click on the BUY or RFQ button to purchase 369200303 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369200303?
You can download the 369200303 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369200303?
MOLEX
