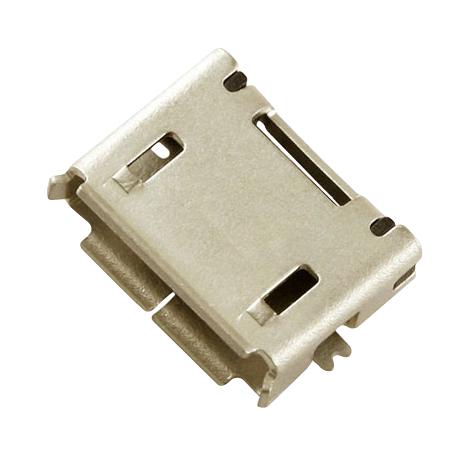

MOLEX 476540001 Micro-USB AB Receptacle
The MOLEX 47654-0001 is a Micro-USB AB receptacle designed for use in consumer electronics and other applications requiring a compact and reliable USB connection. This surface mount connector features extended solder tabs for ease of assembly and is lead-free, meeting modern environmental standards. It supports USB 2.0 data transfer rates and provides a secure connection with a maximum voltage of 30V AC (RMS). The connector's robust design, with a durability of 10000 mating cycles, ensures long-term reliability in demanding environments.
MOLEX 476540001 Micro-USB AB Receptacle Specifications:
- Product Family: I/O Connectors
- Series: 47654
- Application: Wire-to-Board
- Signal Contacts Current: 1.0A
- Power Contacts Current: 1.8A
- Type: Receptacle
- UPC: 883906159337
- Boot Color: N/A
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Color - Resin: Black
- Durability (mating cycles max): 10000
- Flammability: 94V-0
- Gender: Receptacle
- Keying to Mating Part: Yes
- Lock to Mating Part: No
- Material - Metal: Copper Alloy
- Material - Plating (Mating): Gold
- Material - Plating (Termination): Gold
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.263/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Retention: None
- Packaging Type: Embossed Tape on Reel
- Panel Mount: No
- Pitch - Mating Interface: 0.65mm
- Pitch - Termination Interface: 0.65mm
- Polarized to Mating Part: Yes
- Ports: 1
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -30°C to +85°C
- Termination Interface Style: Surface Mount
- Waterproof / Dustproof: No
- Current - Maximum per Contact: 1.8A, 1.0A
- Grounding to Panel: Yes
- Shield Type: Full Shield
- Voltage - Maximum: 30V AC (RMS)
- Lead-freeProcess Capability: REFLOW
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Reference Drawing Numbers: PK-47654-001, SD-47654-001
