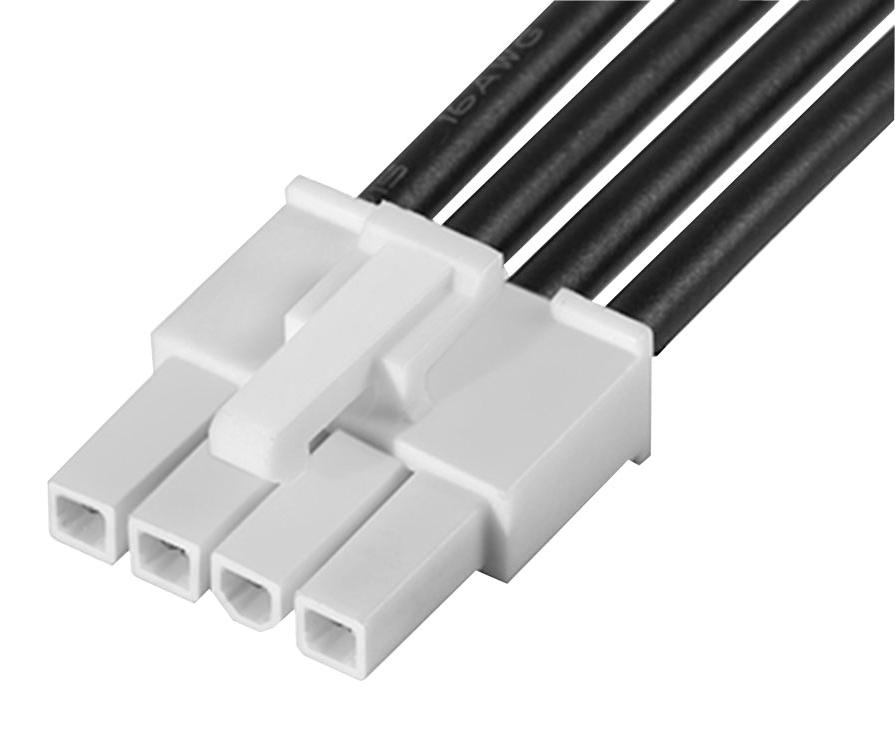

MOLEX 2153222043 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-2043 is a Mini-Fit Jr. male-to-male cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with brass and nylon materials, gold and tin plating for optimal conductivity and durability. This assembly is ideal for applications requiring a secure and reliable power connection, commonly found in industrial equipment, automotive systems, and consumer electronics.
Authorized Distributors
Source:Mouser Electronics
Part No:215322-2043
Stock:20
Inv Date:05-30-2026
Price: Unit price: $10.32
Buy/RFQ:
Source:RS Americas, Inc
Part No:215322-2043
Stock:0
Inv Date:05-29-2026
Price: Unit price: $9.18
Buy/RFQ:
MOLEX 2153222043 Mini-Fit Jr. Cable Assembly Specifications:
- application: Power, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 600.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 57.870/g
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264597475
- material_info: Please check WWW.MOLEX.COM for latest part information
Buy the 215322-2043 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215322-2043 Mini-Fit Jr. Cable Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153222043?
You can click on the BUY or RFQ button to purchase 2153222043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153222043?
You can download the 2153222043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153222043?
MOLEX
