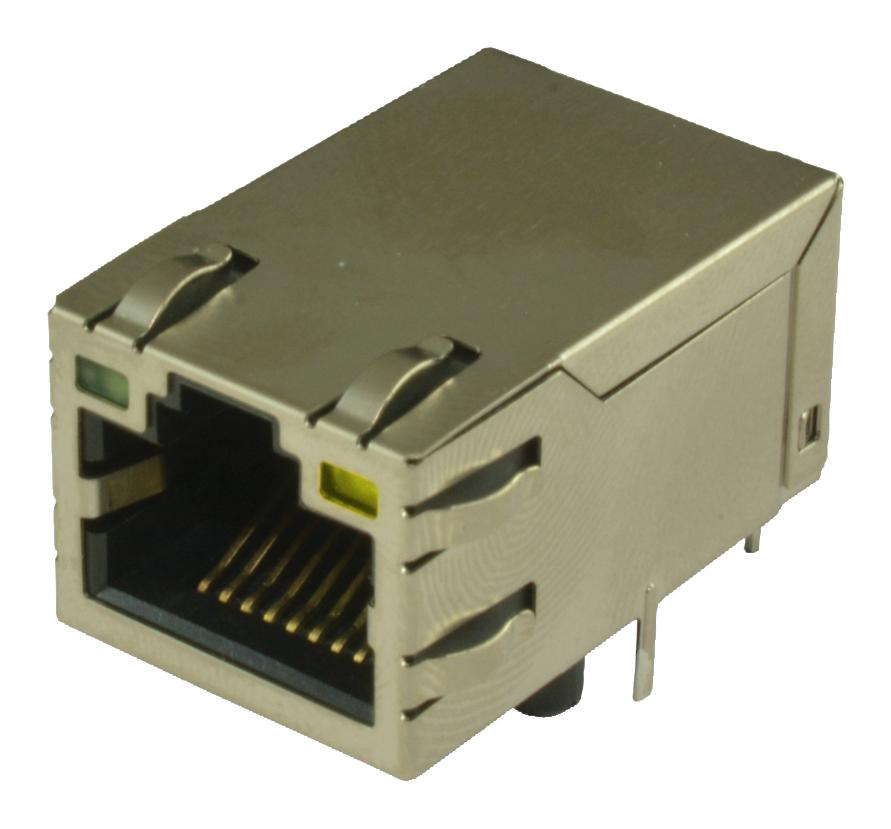

MOLEX 480251190 Ethernet Modular Jack
The modular jack is a right-angle, 10/100 Ethernet connector with integrated magnetic components and LED indicators, designed for PCB mounting and supporting Power over Ethernet (PoE) applications. It features a durable construction with a maximum of 750 mating cycles, made from flame-retardant materials, and includes shielded metal parts with gold-plated contacts for reliable performance. The jack operates within a temperature range of -40°C to +70°C, supports a maximum voltage of 150V AC, and complies with RoHS, UL, and CSA standards, ensuring safety and environmental compliance.
MOLEX 480251190 Ethernet Modular Jack Specifications:
- Product Family: Modular Jacks
- Series: 48025
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Port Configuration: 1x1
- Positions / Loaded Contacts: 8/8
- Dimension - Jack Height: 13.30mm
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Flammability: 94V-0
- Durability (mating cycles max): 750
- Temperature Range - Operating: -40°C to +70°C
- Wire/Cable Type: Through Hole
- Voltage - Maximum: 150V AC (RMS)
- Current - Maximum per Contact: 1.5A
- Packaging: Tray
- Shielded: Yes
- Grounding: PCB and Panel Ground Tab
- Waterproof / Dustproof: No
- Ingress Protection: Not specified
- RoHS Compliance: Yes
- UL and CSA Certified: Yes
Buy the Molex Series 48025 Ethernet Modular Jack: 0480251190
Secure your network connections with this high-performance Ethernet modular jack, featuring integrated magnetic components and LED indicators for status. Designed for durability and compliance, it supports Power over Ethernet (PoE) and withstands up to 750 mating cycles. Made from flame-retardant materials, gold-plated contacts, and shielded metal parts, it operates effectively within a temperature range of -40°C to +70°C. Ideal for PCB mounting, this shielded RJ45 jack is perfect for reliable, professional networking setups, and is available for quick online purchase.
Order your Molex Series 48025 Ethernet modular jack today and ensure reliable network connections with our high-quality, shielded, RoHS-compliant modular jacks.
Frequently Asked Questions
Where can I buy MOLEX 480251190?
You can click on the BUY or RFQ button to purchase 480251190 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 480251190?
You can download the 480251190 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 480251190?
MOLEX
