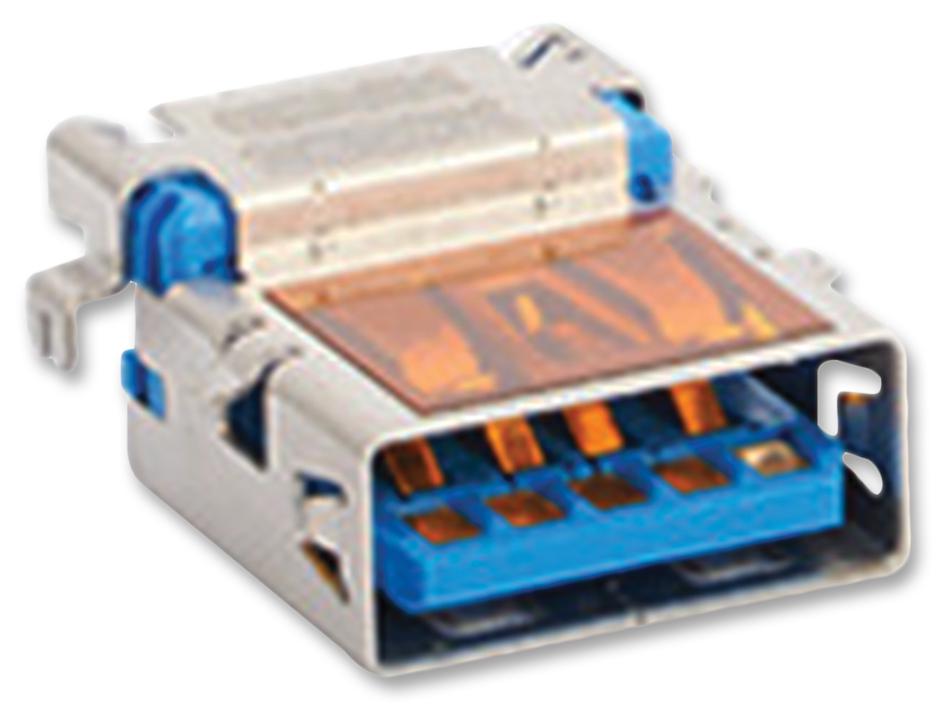

MOLEX 483970003 USB Receptacle
This USB 3.0 Type A receptacle features a right-angle through-hole design, high-temperature blue nylon housing, and 15-karat gold-plated contacts for reliable data transfer. It supports up to 9 circuits with a maximum of 5000 mating cycles, making it ideal for wiring and PCB connections in industrial and electronic applications. Constructed from durable copper alloy and high-temperature thermoplastic, it operates efficiently within -20°C to +85°C. Its compact footprint includes 2.00mm and 2.50mm pitch options, ensuring secure and polarized connections.
MOLEX 483970003 USB Receptacle Specifications:
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Matte Tin
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Blue
- Circuits (Loaded): 9
- Durability (Mating Cycles): 5000
- Orientation: Right Angle
- Temperature Range: -20°C to +85°C
- Maximum Voltage: 30V AC/DC
- Current per Contact: 1.8A
- Pitch - Mating Interface: 2.00mm, 2.50mm
- PC Tail Length: 2.10mm
- PCB Locator and Retention: Yes
- Packaging: Embossed Tape on Reel
- Gender: Female
- Ports: 1
- Keying: Polarized to Mating Part and PCB
- Net Weight: 1.8g
Buy the Molex 48397 U+2013 Reliable USB 3.0 Type A Receptacle for Industrial Applications
Order the Molex USB Receptacle with right-angle through-hole design today and enhance your electronic connections with a durable, gold-plated, high-temperature rated component. Supporting 9 circuits and up to 5000 mating cycles, this USB 3.0 Type A connector ensures reliable performance in demanding industrial environments. Its compact size, polarized design, and robust construction provide secure, long-lasting connections for wiring and PCB applications. Purchase online now for fast, easy access to quality connectivity components.
Buy Molex 48397 right-angle USB 3.0 receptacle now and enjoy dependable high-speed data transfer for industrial and electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 483970003?
You can click on the BUY or RFQ button to purchase 483970003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 483970003?
You can download the 483970003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 483970003?
MOLEX
