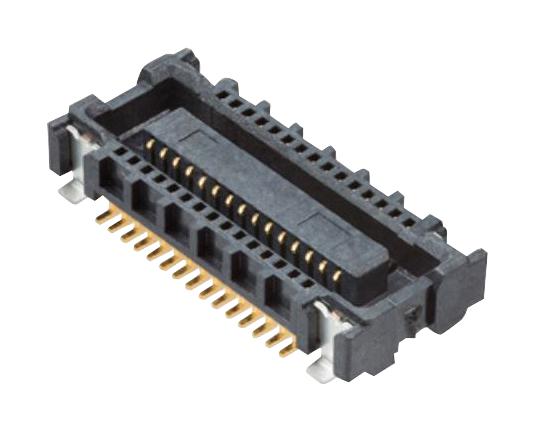

MOLEX 5009130302 SlimStack Board-to-Board Connector
The SlimStack connector series offers a compact, reliable board-to-board connection solution featuring a 0.40mm pitch, high durability with up to 30 mating cycles, and two mated heights of 1.80mm or 2.30mm. Constructed from high-temperature thermoplastic and phosphor bronze, with gold plating for enhanced performance, these connectors are designed for applications requiring precise alignment and secure connections. Suitable for vertical orientation, the series supports up to 0.3A current and 50V AC/DC voltage ratings, making it ideal for densely packed electronic modules in modern electronic designs.
MOLEX 5009130302 SlimStack Board-to-Board Connector Specifications:
- Pitch: 0.40mm
- Mated Height: 1.80mm or 2.30mm
- Mated Width: 4.20mm
- Number of Circuits: 30
- Material - Metal: Phosphor Bronze
- Plating - Mating: Gold
- Plating - Termination: Gold
- Resin Color: Black
- Durability: Up to 30 mating cycles
- Temperature Range - Operating: -25°C to +85°C
- Current - Maximum per Contact: 0.3A
- Voltage - Maximum: 50V AC/DC
- Surface Mount Compatible: Yes
- Packaging: Embossed Tape on Reel
Buy the Molex Series SlimStack Connector: 5009130302
Purchase the Molex SlimStack Board-to-Board Connector online today to enjoy high-quality, compact, and reliable connections perfect for densely populated electronic devices. With a 0.40mm pitch and gold-plated contacts, these connectors ensure excellent electrical performance and durability. Ideal for applications requiring precise alignment and secure mating, this series supports up to 30 mating cycles and is rated for 50V and 0.3A, making it suitable for a wide range of modern electronic assemblies. Order now for quick delivery and excellent customer support.
Buy Molex 5009130302 now and experience unmatched reliability and performance in compact electronic connections.
