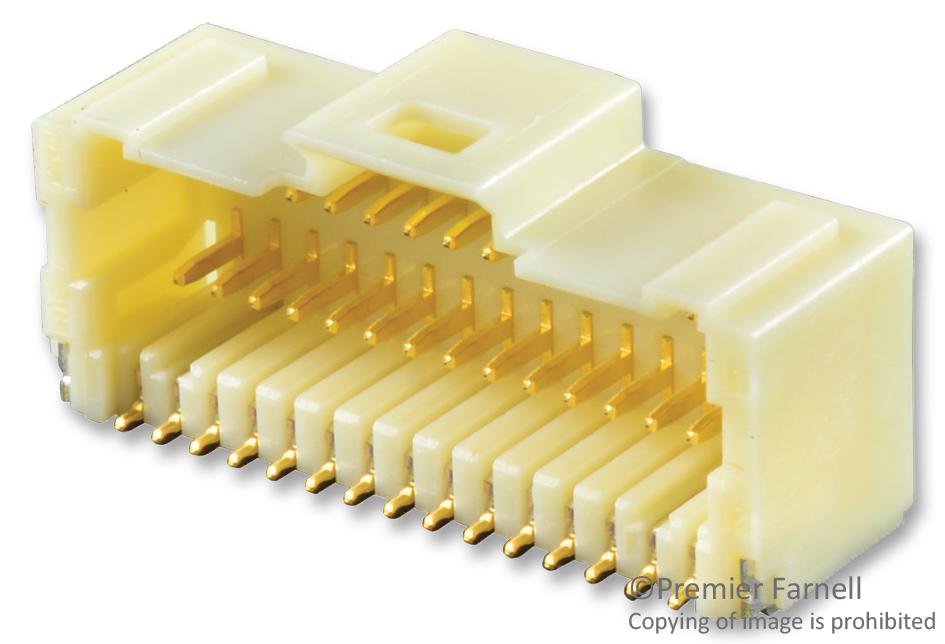

MOLEX 5015713007 Wire-to-Board Connector
The Pico-Clasp Wire-to-Board Header is a 1.00mm pitch surface mount connector designed for reliable electrical connections in electronic assemblies. Featuring dual rows, 30 circuits, and a right-angle orientation, it is gold-plated for enhanced conductivity and corrosion resistance. Equipped with an inner positive lock, it ensures secure mating, durability for multiple mating cycles, and is RoHS compliant. Ideal for compact, high-density applications, this connector supports current up to 1.0A per contact and a maximum voltage of 50V AC/DC. Suitable for a broad range of electronic devices and industrial equipment requiring dependable wire-to-board connections.
MOLEX 5015713007 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Circuits (Loaded): 30
- Circuits (Maximum): 30
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Nylon
- Color - Resin: Natural
- Durability (Mating Cycles Max): Not specified
- Orientation: Right Angle
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- Net Weight: 853.000 mg
- Packaging Type: Embossed Tape on Reel
- Guide to Mating Part: Pico-Clasp Female Housing 501189
- RoHS Compliance: Yes
- EU RoHS, China RoHS, REACH SVHC: Compliant
- Halogen-Free: No
- Shrouded: No
- Stackable: No
- PCB Locator: Yes
- PCB Retention: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
Buy the Buy Molex Pico-Clasp Wire-to-Board Part Number 5015713007 Online
Purchase the Molex Pico-Clasp Wire-to-Board Connector online today and ensure secure, reliable connections for your electronic projects. Designed with a 1.00mm pitch and dual-row configuration, this surface mount connector features gold plating for superior conductivity and corrosion resistance. Its right-angle orientation allows for space-saving layouts, making it perfect for compact electronic devices. Withstanding -40°C to +105°C operating temperatures, supporting up to 1.0A per contact, and RoHS compliance, this connector guarantees high performance and durability. Order now to streamline your assembly process with a trusted, industry-standard component.
Buy Molex 5015713007 now and experience unmatched reliability and high-density connectivity in your electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 5015713007?
You can click on the BUY or RFQ button to purchase 5015713007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5015713007?
You can download the 5015713007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5015713007?
MOLEX
