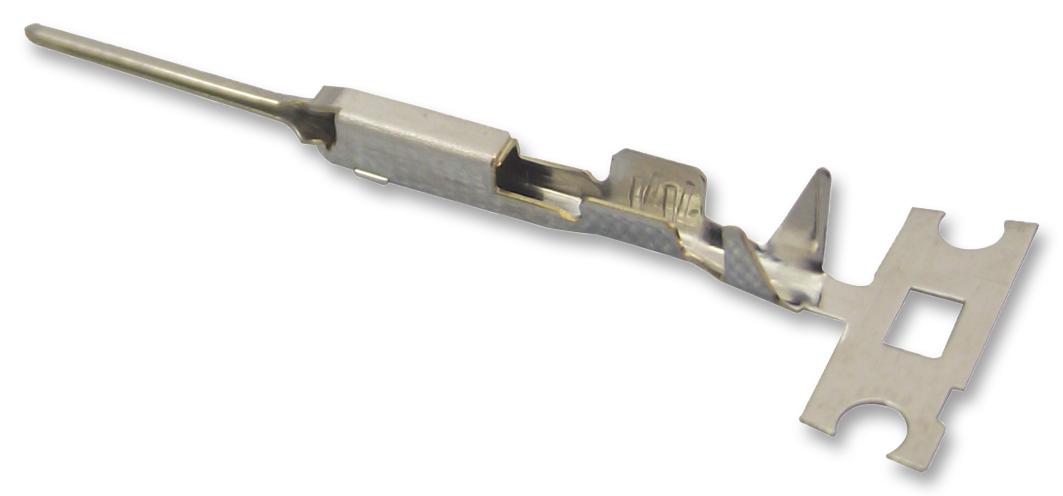

MOLEX 5018270101 CMC Wire-to-Wire Connector
The MOLEX 5018270101 is a CMC wire-to-wire connector, specifically a male terminal designed for secure and reliable connections in various industrial applications. It's part of the 501827 series and is engineered for use in hybrid, modular connector systems. The connector features brass construction with tin plating on both mating and termination surfaces, ensuring excellent conductivity and corrosion resistance. It supports wire gauges ranging from 0.80-1.00 mm² and has a maximum current capacity of 12.0A, making it suitable for power transmission applications. This RoHS compliant connector is a key component in automotive, industrial automation, and consumer electronics systems.
MOLEX 5018270101 CMC Wire-to-Wire Connector Specifications:
- Series: 501827
- Application: Crimp Quality Equipment
- Gender: Male
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 160.000/mg
- Packaging Type: Reel
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.7mm
- Wire Size AWG: N/A
- Wire Size mm²: 0.80-1.00
- Current - Maximum per Contact: 12.0A
- Lead-freeProcess Capability: N/A
- EU ELV Compliant: Yes
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: 5018203201
- Use With: 501820 Plug Housing
Buy the 5018270101 MOLEX CMC Wire-to-Wire Connector | myMectronic
Purchase the MOLEX 5018270101 CMC Wire-to-Wire Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 5018270101?
You can click on the BUY or RFQ button to purchase 5018270101 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5018270101?
You can download the 5018270101 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5018270101?
MOLEX
