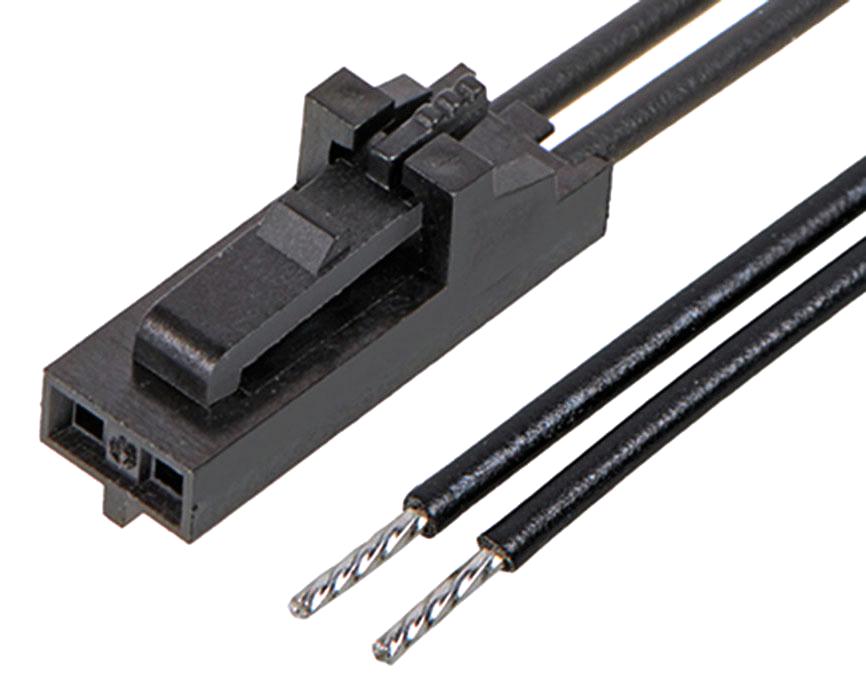

MOLEX 2162711023 Signal Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly features a female-to-pigtail connection, supporting crimp, FFC, and IDT terminations. It employs a terminal design with two independent contact points for redundancy, ensuring reliable electrical performance over time. The assembly includes a connector position assurance lock to prevent disengagement in high-vibration environments, making it ideal for demanding industrial, automotive, and telecommunication applications. Constructed with a polyester alloy housing, phosphor bronze contacts, and tin plating, it operates at up to 600V AC/DC, handling currents up to 3A, within temperature ranges from -40°C to +105°C, capable of 25 mating cycles.
MOLEX 2162711023 Signal Cable Assembly Specifications:
- Cable Length: 300.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Voltage - Maximum: 600V AC/DC
- Current - Maximum per Contact: 3A
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: 25
- Lock to Mating Part: Yes
- Termination Interface: Crimp, FFC, IDT
- Wire Insulation Diameter: 1.63mm
- Wire Size AWG: 22
- Pitch - Mating Interface: 2.54mm
- Gender: Female
- Packaging Type: Bag
Buy the Buy Molex Signal Cable Assembly Part Number 2162711023 Online
Purchase the Molex signal cable assembly online today for robust performance in industrial, automotive, and telecommunications equipment. Featuring a female-to-pigtail configuration with a positive lock, it offers high reliability, corrosion resistance with tin-plated contacts, and supports multiple termination styles including crimp, FFC, and IDT. Rated for 600V and 3A, it withstands temperatures from -40°C to +105°C. The low-profile, stackable design ensures flexible integration into various devices, providing long-lasting connectivity for demanding applications.
Get Molex 2162711023 today—built for reliable electrical connections in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy MOLEX 2162711023?
You can click on the BUY or RFQ button to purchase 2162711023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711023?
You can download the 2162711023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711023?
MOLEX
