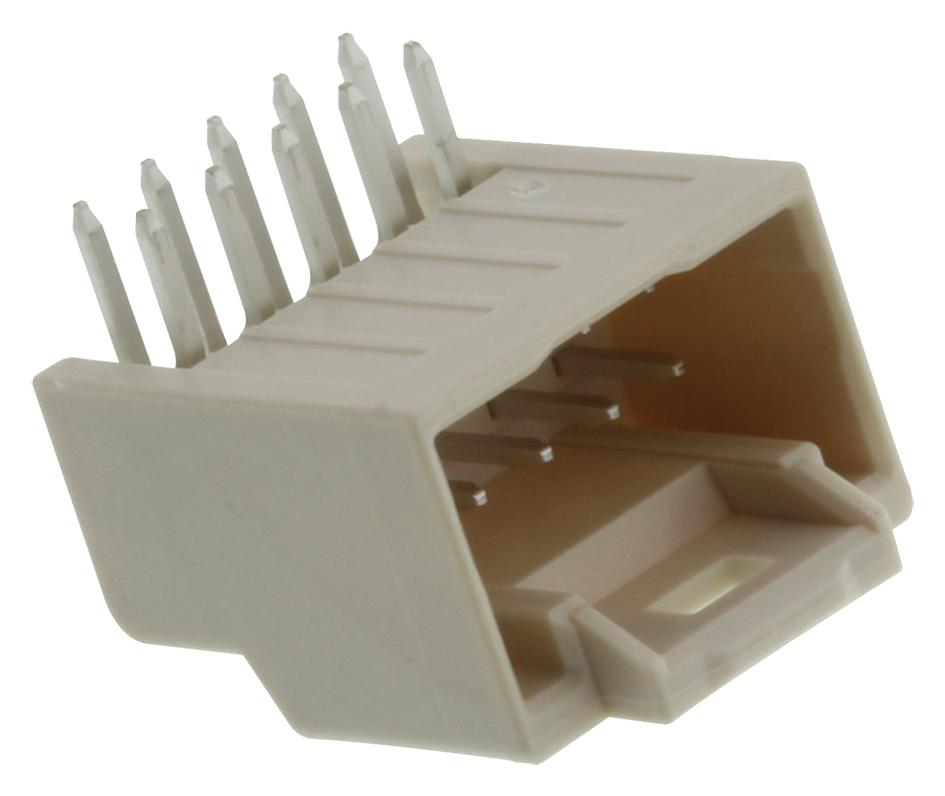

MOLEX 5018762640 iGrid Wire-to-Board Header
The MOLEX 501876-2640 iGrid Wire-to-Board Header is a robust solution for connecting wires to printed circuit boards. Designed with a 2.00mm pitch and a dual-row configuration, this right-angle header provides a secure and reliable connection for signal transmission. The tin plating ensures excellent solderability and corrosion resistance, while the nylon resin material offers durability and insulation. It is ideal for applications requiring a compact and efficient wire-to-board interface, commonly found in industrial equipment, consumer electronics, and automotive systems. The header supports a maximum current of 2.0A and a voltage of 250V AC/DC, making it suitable for a wide range of power and signal applications.
MOLEX 5018762640 iGrid Wire-to-Board Header Specifications:
- status: Active
- overview: iGrid Wire-to-Board Dual-Row System
- description: 2.00mm Pitch iGrid Wire-to-Board Header, Dual Row, Right-Angle, Tin (Sn) Plating, 26 Circuits
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- product_family: PCB Headers
- series: 501876
- application: Signal, Wire-to-Board
- upc: 822350321860
- circuits_loaded: 26
- circuits_maximum: 26
- color_resin: Natural
- durability_mating_cycles: 30
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_mg: 2889.500
- number_of_rows: 2
- orientation: Right Angle
- pc_tail_length_mm: 3.20
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.20, 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 2.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 2.0
- voltage_maximum_ac_rms_v: 250
- voltage_maximum_dc_v: 250
- elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: 501646 Housing, 501647 Crimp Terminal 22-26 AWG, 501648 Crimp Terminal 26-28 AWG
