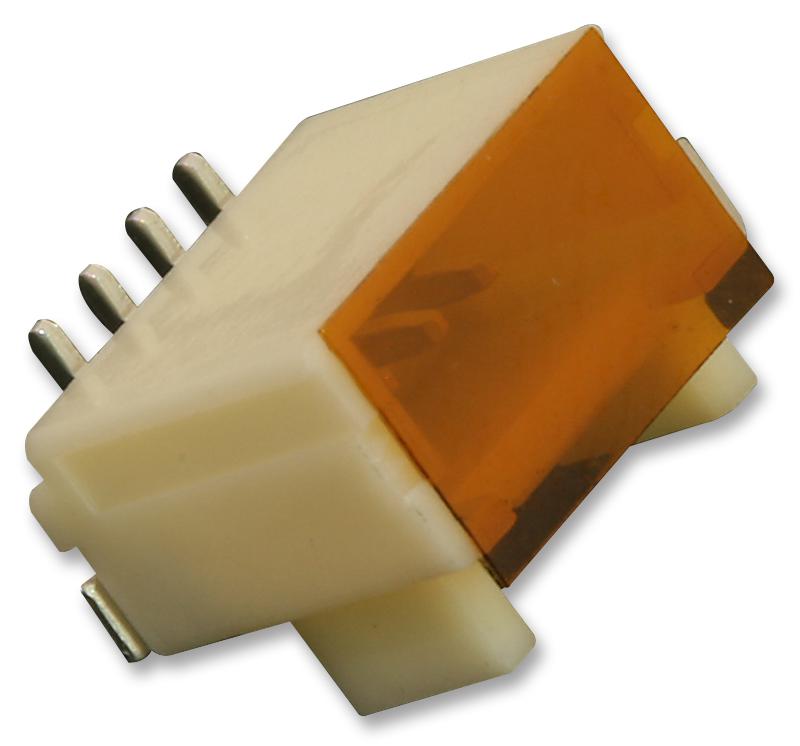

MOLEX 5019400507 Pico-Clasp Wire-to-Board Header
The MOLEX 501940-0507 is a Pico-Clasp wire-to-board header, part of the 501940 series. This header is designed for surface mount applications and features a 1.00mm pitch, providing a compact solution for wire-to-board connections. It offers a vertical orientation and incorporates a positive lock mechanism to ensure a secure and reliable mating connection. Constructed with phosphor bronze and tin plating, this header is suitable for a wide range of industrial applications requiring robust and space-efficient connectivity. It is compatible with Pico-Clasp housings and offers excellent durability with a 30 mating cycle rating.
MOLEX 5019400507 Pico-Clasp Wire-to-Board Header Specifications:
- overview: Pico-Clasp Wire-to-Board Connectors
- description: 1.00mm Pitch Pico-Clasp Wire-to-Board Header, Surface Mount, Single Row, Vertical, 1.01µm Tin Plated, with Outer Positive Lock, with Pick-and-Place Tape, 5 Circuits
- series: 501940
- circuits_loaded: 5
- circuits_maximum: 5
- color_resin: Natural
- durability_mating_cycles: 30
- first_mate_last_break: No
- glow_wire_capable: No
- guide_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 136.900/mg
- number_of_rows: 1
- orientation: Vertical
- pcb_locator: No
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 1.00mm
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- shrouded: Fully Stackable
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 1.0A
- voltage_maximum: 50V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
