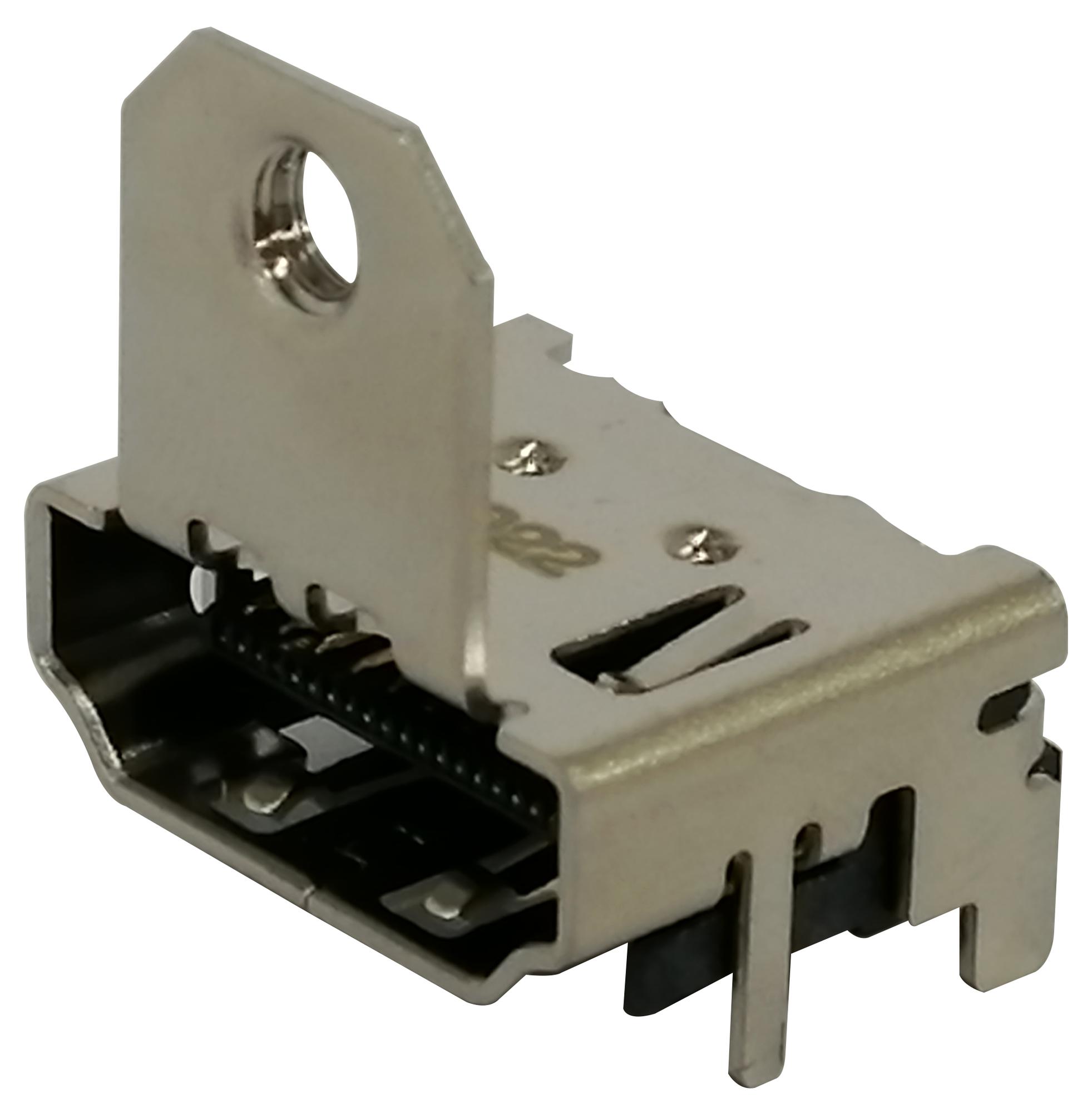

MOLEX 2086588121 HDMI Receptacle
The MOLEX 208658-8121 is a high-definition multimedia interface (HDMI) receptacle designed for robust and reliable connections. This right-angle connector features a 0.50mm pitch and utilizes 0.76µm gold plating for enhanced conductivity and durability. It's suitable for wire-to-board applications and is packaged in a tray for easy handling. The connector is polarized to both the mating part and the PCB, ensuring proper alignment and preventing misconnections. Its robust design and gold-plated contacts make it ideal for demanding industrial and consumer electronics applications.
MOLEX 2086588121 HDMI Receptacle Specifications:
- circuits_loaded: 19 Circuits
- circuits_maximum: 19 Circuits
- color_resin: Black
- durability_mating_cycles: 10000
- gender: Female
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: Liquid Crystal Polymer
- net_weight_g: 2.400
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Tray
- panel_mount: With Flange
- pitch_mating_interface: 0.50mm
- pitch_termination_interface: 0.50mm
- plating_min_mating: 0.762µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- ports: 1
- temperature_range_operating_c: -20° to +85°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 0.5
- voltage_maximum_dc_v: 40
