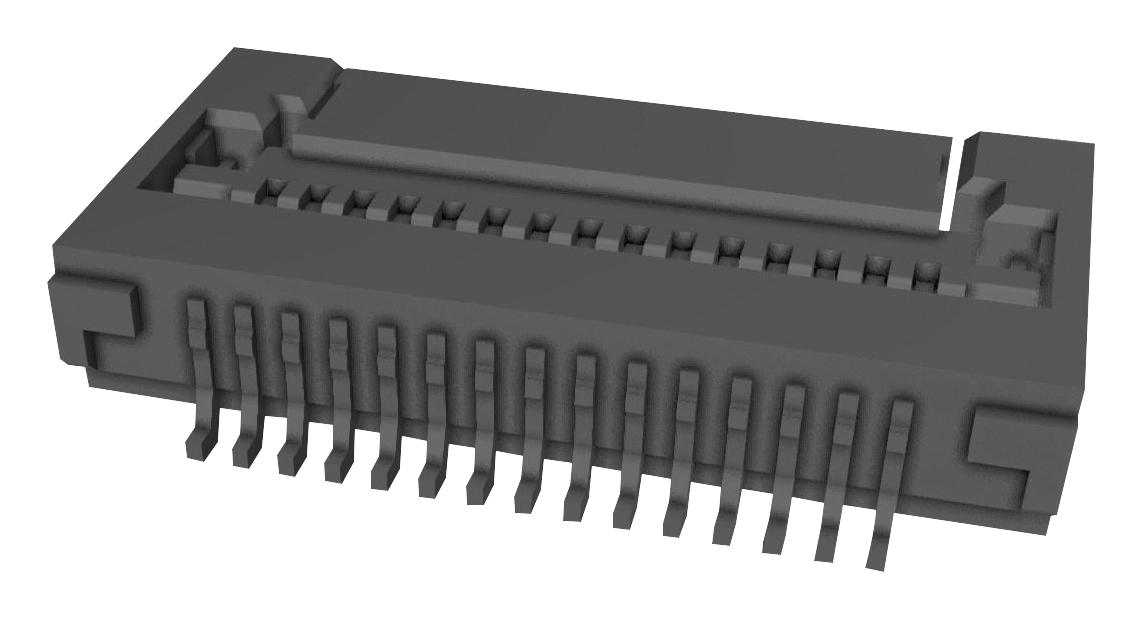

MOLEX 5022441530 FFC-FPC Connector
The Easy-On FFC-FPC Connector features a 0.50mm pitch, surface-mount design, and right-angle orientation, making it ideal for LVDS applications. It supports 15 circuits with a bottom contact style and a mated height of 2.33mm. The connector is made of phosphor bronze with gold plating on contacts and terminations for enhanced durability and reliable electrical connection. It has an operating temperature range of -25°C to +85°C, maximum current per contact of 0.4A, and maximum voltage of 50V AC/DC. Packaged on embossed tape for easy installation, it is RoHS compliant and designed for surface mount PCB mounting with a flip actuator and bottom contact style.
MOLEX 5022441530 FFC-FPC Connector Specifications:
- Pitch: 0.50mm
- Number of Circuits: 15
- Height: 2.33mm
- Configuration: Right-Angle, Surface Mount, Bottom Contact
- Material - Metal: Phosphor Bronze
- Material - Plating: Gold
- Color: Black, Natural
- Durability: Up to 20 mating cycles
- Operating Temperature: -25°C to +85°C
- Maximum Current per Contact: 0.4A
- Maximum Voltage: 50V AC/DC
- Packaging: Embossed Tape on Reel
- RoHS Compliant: Yes
- Optional Use: For LVDS cables
- Connector Type: FFC-FPC, ZIF, Flip Actuator
- PCB Mounting: Surface Mount, No PCB Locator
- Wire/Cable Type: FFC only
- Application: Suitable for LVDS interfaces and high-density electronic assemblies
Buy the Buy Molex Easy-On FFC-FPC Connector Part Number 5022441530 Online
Purchase the Molex Easy-On FFC-FPC connector online today to benefit from a high-quality, durable, and reliable solution for LVDS connections. Featuring a 0.50mm pitch, right-angle design, and gold-plated contacts, this surface-mount connector supports 15 circuits and offers an operating temperature range of -25°C to +85°C. Its compact height of 2.33mm makes it ideal for space-constrained electronic assemblies. Packaged on reels for efficient installation, this RoHS-compliant connector ensures excellent electrical performance with up to 20 mating cycles, perfect for various high-speed data applications.
Order your Molex Series502244 5022441530 FFC-FPC connector today and ensure reliable high-density connections with ease of installation.
Frequently Asked Questions
Where can I buy MOLEX 5022441530?
You can click on the BUY or RFQ button to purchase 5022441530 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5022441530?
You can download the 5022441530 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5022441530?
MOLEX
