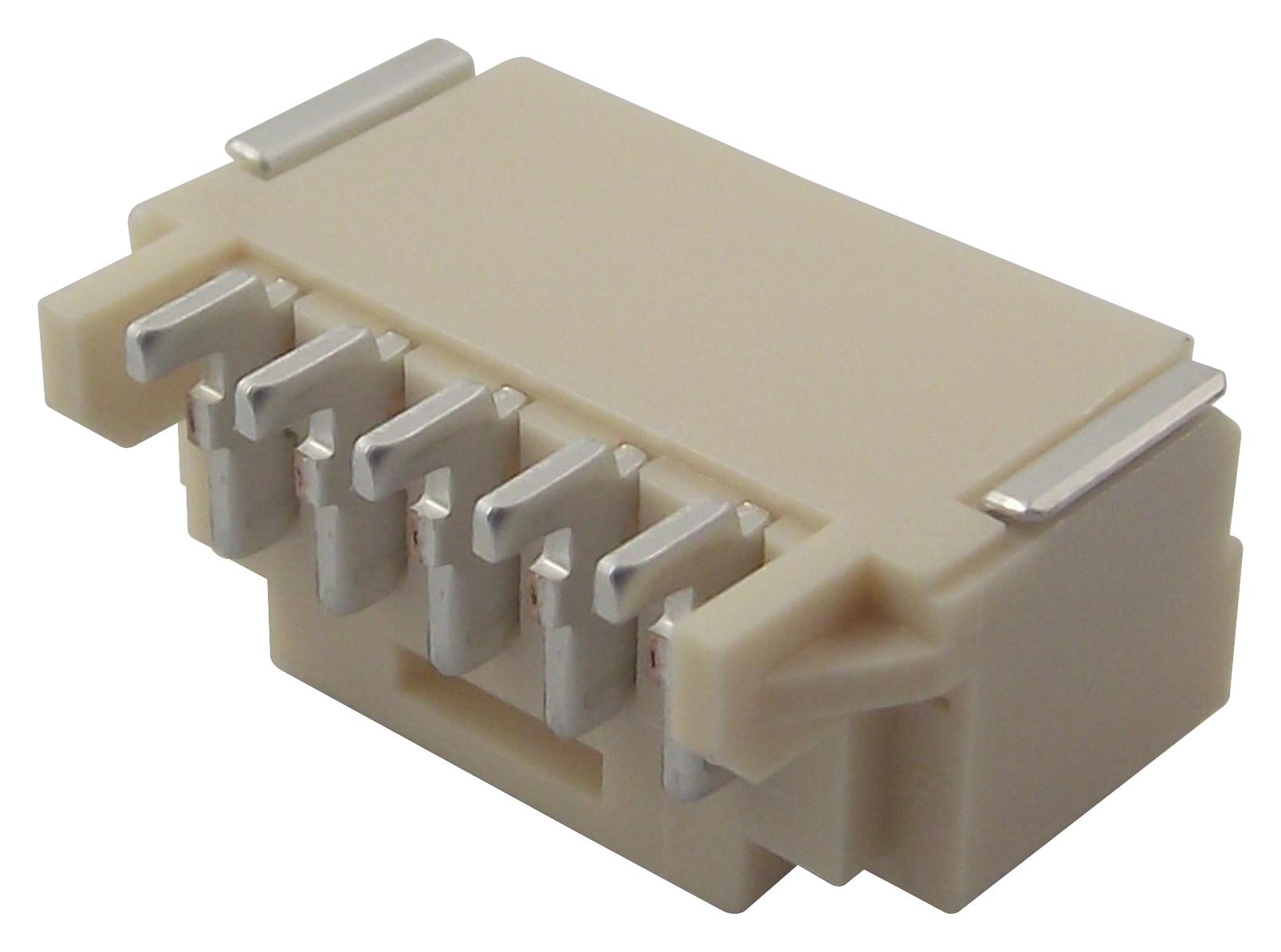

MOLEX 5023520510 Wire-to-Board Connector
The DuraClik Wire-to-Board Header is a reliable, high-quality connector designed for industrial and electronic applications. It features a right-angle design with 5 circuits, gold plating, and a natural resin color. Built with durable copper alloy material and gold over nickel plating, it supports a maximum current of 3.0A per contact and a voltage of 125V. The connector operates effectively within a temperature range of -40°C to +105°C, ensuring secure connections in demanding environments. Suitable for PCB mounting, it withstands up to 6,400 mating cycles for long-lasting performance.
MOLEX 5023520510 Wire-to-Board Connector Specifications:
- Maximum current per contact: 3.0A
- Maximum voltage: 125V
- Operating temperature range: -40°C to +105°C
- Material: Copper alloy with gold over nickel plating
- Resin: Polyamide
- Number of circuits: 5
- Pitch: 2.00mm
- Mating height: 6.40mm
- Termination style: Surface mount
- Durability (mating cycles): 6,400 cycles
- Flammability: UL approved
- RoHS compliant
- Halogen-Free: No
- Color: Natural
- Assembly: Embossed tape on reel
- Wire size: Suitable for wiring compatible with 20-24 AWG
- Locking mechanism: Yes, keying for secure connection.
Buy the Molex 5023520510 – Reliable Wire-to-Board Connector for Industrial Applications
Purchase the Molex Wire-to-Board Connector online today to ensure reliable, high-performance connections in your electronic projects and industrial equipment. Designed with a durable copper alloy and gold plating, this connector offers a maximum current of 3.0A per contact and is rated for operation within -40°C to +105°C. Its 2.00mm pitch and right-angle design make it versatile for various PCB applications. With up to 6,400 mating cycles, it guarantees long-lasting, secure connections. Order now for quality, efficiency, and peace of mind in your assembly process.
Get Molex 5023520510 today—built for precision and long-lasting durability in demanding electronic and industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 5023520510?
You can click on the BUY or RFQ button to purchase 5023520510 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023520510?
You can download the 5023520510 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023520510?
MOLEX
