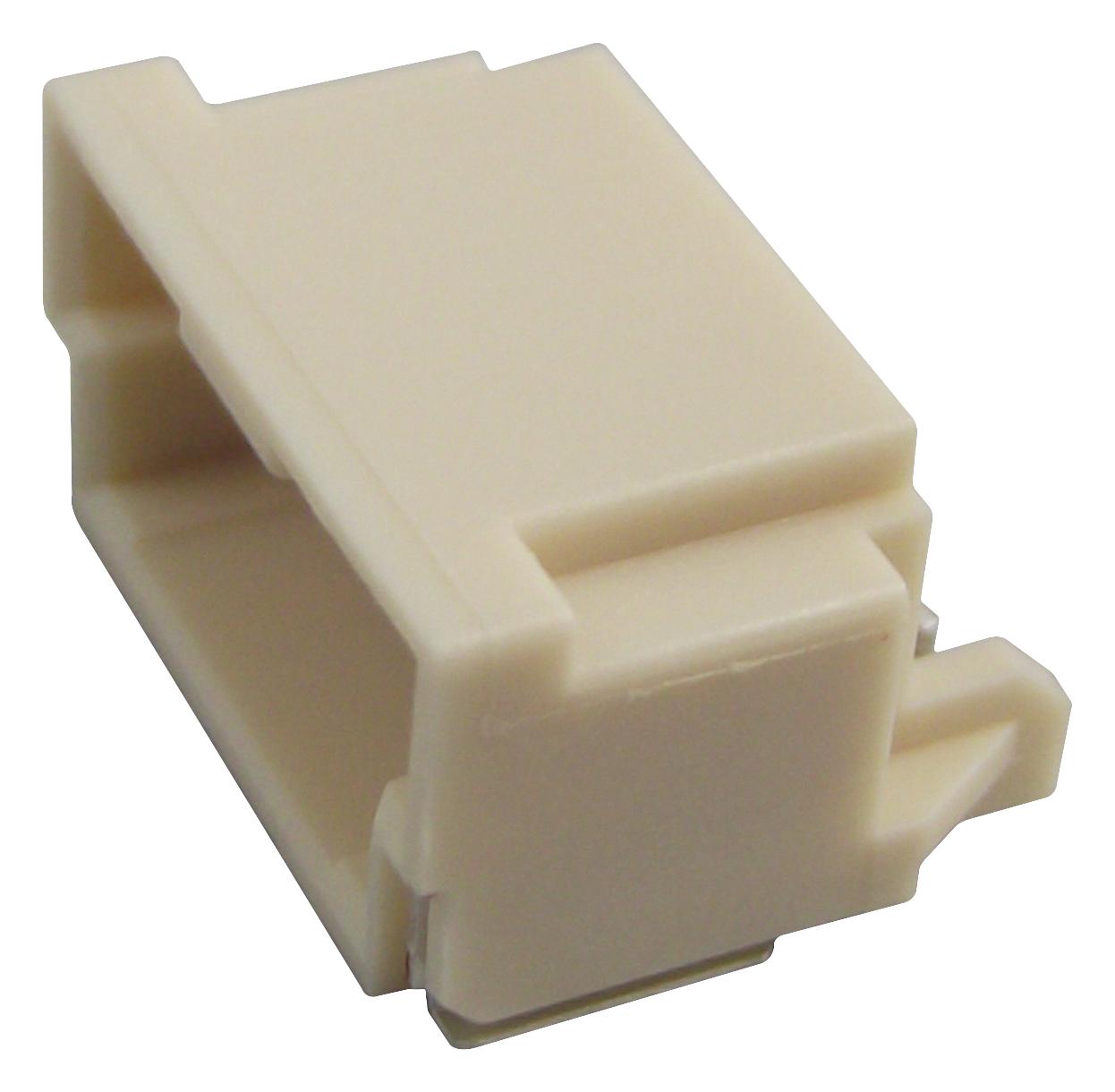

MOLEX 5023520610 Wire-to-Board Connector
The DuraClik Wire-to-Board Header is a reliable right-angle connector with six circuits, featuring gold plating for enhanced durability and corrosion resistance. Designed for efficient PCB connections, it operates within a temperature range of -40°C to +105°C, or up to +125°C when used with specific series. Constructed with a copper alloy and polyamide resin, it ensures robust performance with a maximum current of 3.0A per contact and a maximum voltage of 125V. This connector is RoHS and halogen-free, suitable for industrial electronics requiring secure and precise wire-to-board connections.
MOLEX 5023520610 Wire-to-Board Connector Specifications:
- Number of Circuits: 6
- Color - Resin: Natural
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel
- Material - Resin: Polyamide
- Terminations: Surface Mount
- Pitch - Mating Interface: 2.00 mm
- Lock to Mating Part: No
- Mated Height: 6.40 mm
- Operating Temperature Range: -40°C to +105°C (standard), -40°C to +125°C (with specific series)
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 125V
- Durability (mating cycles max): Not specified
- RoHS, EU ELV, China RoHS Compliant, Halogen-Free
Buy the Molex Series DuraClik Wire-to-Board Connector: 5023520610
Enhance your electronics with the Molex DuraClik Wire-to-Board Connector, designed for reliable PCB connections with six circuits and gold plating for superior contact performance. This high-quality component operates across a temperature range of -40°C to +125°C, depending on the series, and handles up to 3A per contact at 125V. Constructed with durable copper alloy and polyamide resin, it ensures long-lasting, secure connections compliant with RoHS standards. Perfect for industrial, automation, and electronic assembly applications, ensuring efficiency and safety.
Order your Molex Series DuraClik 5023520610 today and secure high-quality, durable wire-to-board connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5023520610?
You can click on the BUY or RFQ button to purchase 5023520610 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023520610?
You can download the 5023520610 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023520610?
MOLEX
