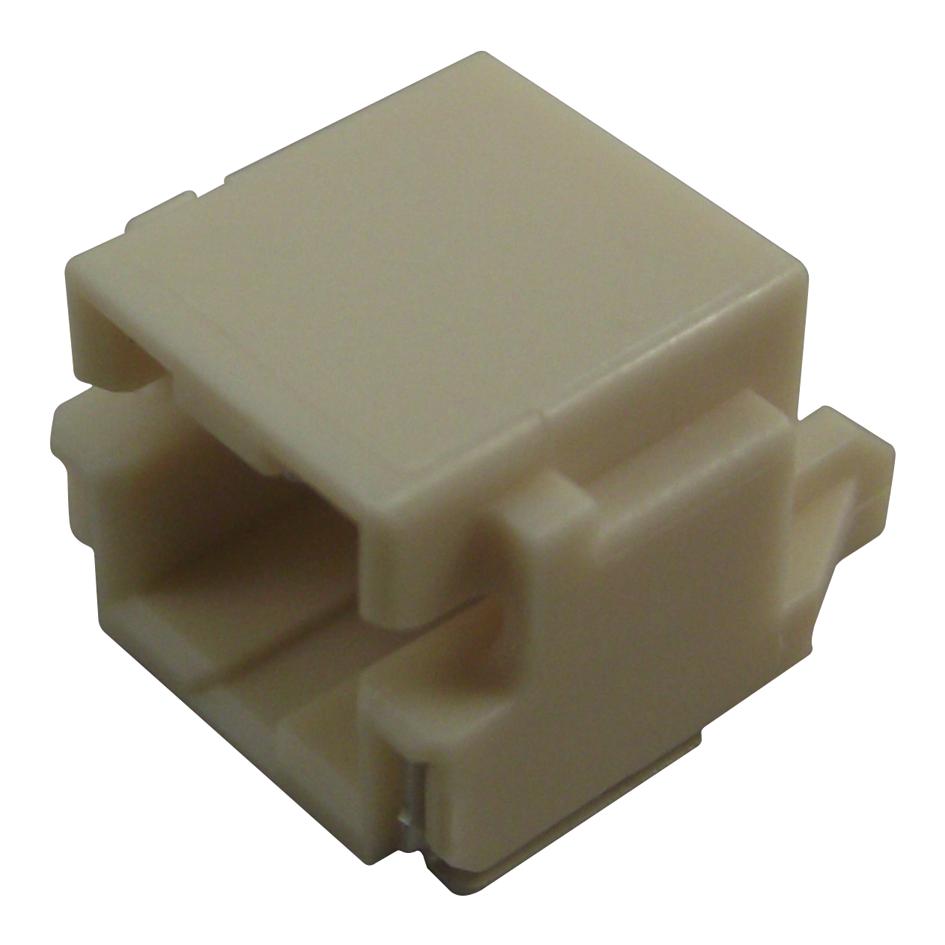

MOLEX 5023520700 Wire-to-Board Connector
The DuraClik Wire-to-Board Header is a versatile, right-angle connector designed for secure and reliable electrical connections in various electronic applications. It features seven circuits with tin-plated contacts, ensuring optimal conductivity and corrosion resistance. The connector supports a durable mating cycle of up to 30, making it suitable for repeated connections. Constructed from high-quality polyamide resin with copper alloy contacts, it operates within a temperature range of -40°C to +105°C. Compatible with DuraClik series crimp housings, the header ensures easy installation and maintenance for industrial, automation, and electronic systems.
MOLEX 5023520700 Wire-to-Board Connector Specifications:
- Number of Circuits: 7
- Orientation: Right-Angle
- Color - Resin: Natural
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin over Nickel
- Material - Resin: Polyamide
- Contact Units: 0.841 grams each
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 125V
- Solder Process Data: Max. temperature 255°C for 040 seconds
- Mated Height: 6.40mm
- Durability (mating cycles max): 30
- Packaging: Embossed Tape on Reel
- Pitch - Mating Interface: 2.00mm
- RoHS & ELV Compliant, Halogen-Free, Reflow process capable
Buy the Molex Series DuraClik Wire-to-Board Header: 5023520700
Enhance your electronic assembly with the Molex DuraClik Wire-to-Board Header featuring 7 circuits and a durable, right-angle design. Crafted from high-quality copper alloy contacts and polyamide resin, it ensures secure connections and withstands up to 30 mating cycles. Operating efficiently between -40°C and +105°C, this connector supports a maximum current of 3A per contact and voltages up to 125V. Its easy-to-use surface mount design includes an embossed tape for reel packaging, making it ideal for automation and industrial systems. Purchase online for quick, reliable delivery and long-lasting performance.
Get Molex 5023520700 today—built for lasting durability and reliable electrical connections in your industrial or electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 5023520700?
You can click on the BUY or RFQ button to purchase 5023520700 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023520700?
You can download the 5023520700 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023520700?
MOLEX
