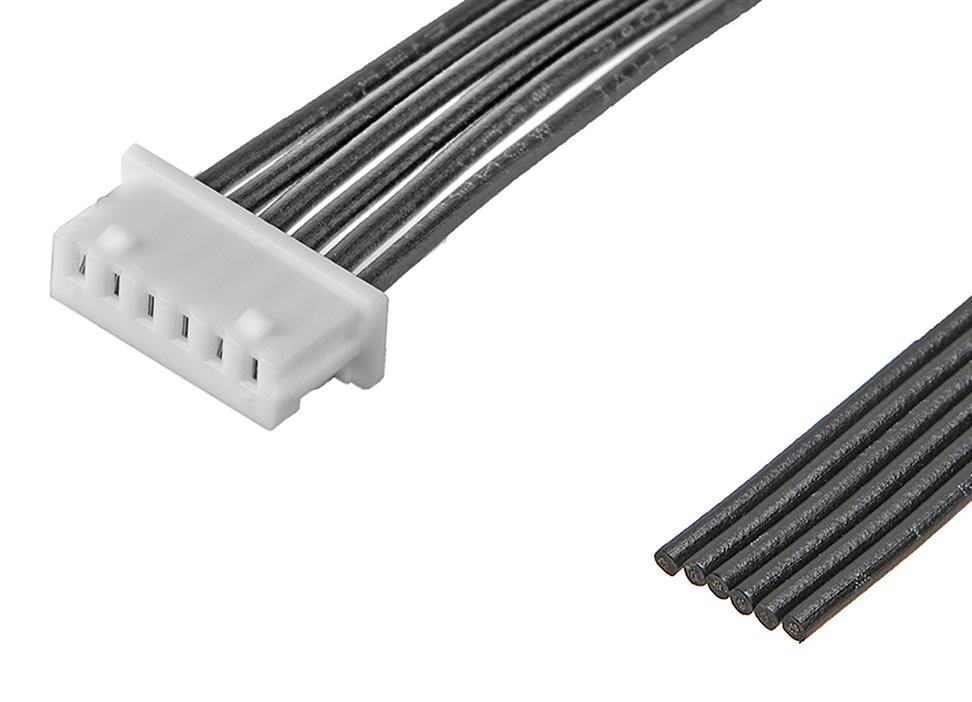

MOLEX 2181120601 PicoBlade Cable Assembly
The PicoBlade female-to-pigtail off-the-shelf cable assembly features a 150mm long, single-row connector designed for reliable connection with PicoBlade headers and plug housings. Constructed with phosphor bronze contacts that are tin-plated, it ensures durable and consistent mating. The assembly uses polyester resin insulation, has a 1.25mm pitch, and supports crimp or compression termination styles for 28 AWG wires. Ideal for signal, wire-to-board, and wire-to-wire applications, it is compliant with RoHS standards and suitable for easy prototyping and manufacturing tasks.
MOLEX 2181120601 PicoBlade Cable Assembly Specifications:
- Connector Type: Female-to-Pigtail, Single Row
- Cable Length: 150.00mm
- Number of Circuits: 6
- Materials: Phosphor bronze contacts, Tin-plated, Polyester resin insulation
- Wire Size: 28 AWG
- Wire Insulation Diameter: 0.50-1.00mm
- Pin Pitch: 1.25mm
- Connector Gender: Female with Pigtail
- Assembly Type: Discrete Wire, Off-the-shelf (OTS)
- Termination Style: Crimp or Compression
- Wire Standard: UL1061
- RoHS Compliance: Yes
- Color: Natural
- Net Weight: Approximately 1.376 grams
- Application: Signal, Wire-to-Board, Wire-to-Wire
Buy the Molex 2181120601 – Reliable PicoBlade Cable Assembly for Industrial Applications
Enhance your electronic projects with the Molex PicoBlade Cable Assembly. This 150mm, 6-circuit, natural-colored connector ensures secure, reliable connections for signal and wire-to-board applications. It features phosphor bronze contacts, tin-plated for durability, and polyester insulation for safety. Designed for crimp or compression termination styles, supporting 28 AWG wire, it seamlessly integrates into your manufacturing or prototyping process. RoHS compliant and easy to install, this assembly provides dependable performance for industrial and electronic systems, making it an essential component for engineers and technicians.
Buy Molex 2181120601 now and experience unmatched reliability and performance in signal and wire-to-wire connections.
