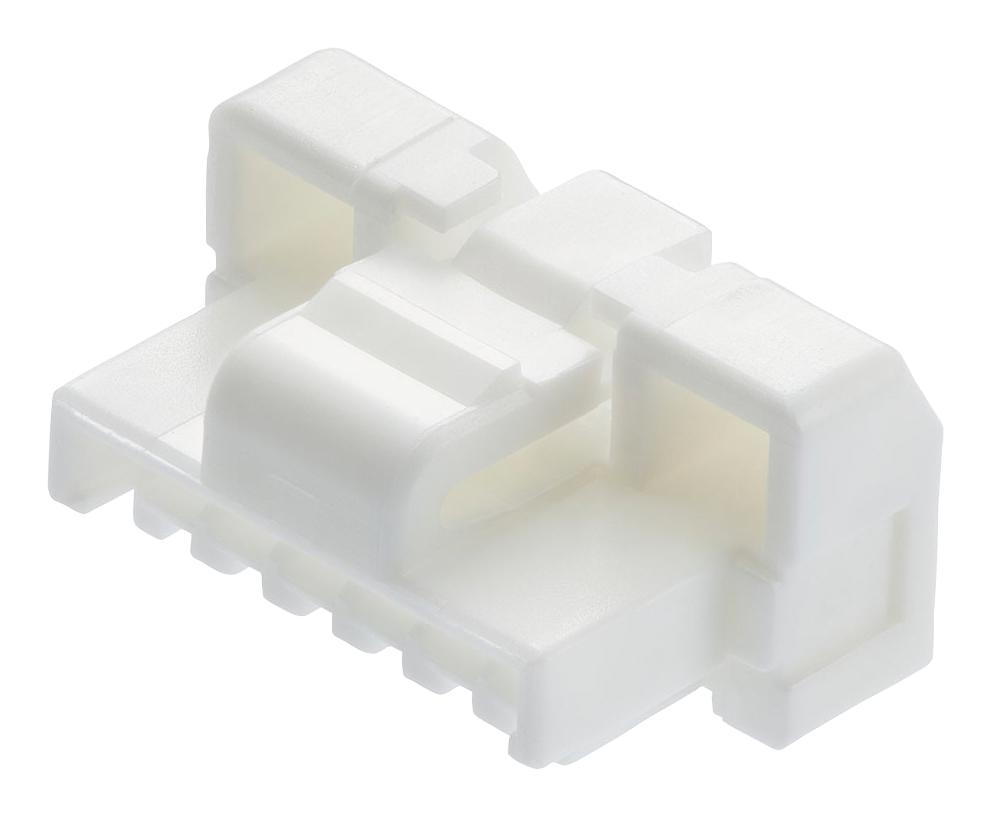

MOLEX 5023800700 Wire Connector
The 1.25mm Pitch CLIK-Mate Wire-to-Board Connector Housing is a reliable terminal designed for signal applications, featuring a single-row configuration with a positive lock and keying to mating parts. Made from durable polyester resin, it supports a temperature range of -40°C to +105°C and can handle a maximum current of 1.0A per contact. Suitable for wire-to-board connections, it is white in color, stackable, and packaged in bags. Compatible with 502380 series receptacles and crimp terminals for secure, quick connections in electronic assemblies.
MOLEX 5023800700 Wire Connector Specifications:
- Pitch - Mating Interface: 1.25mm
- Color - Resin: White
- Material - Resin: Polyester
- Circuits (maximum): 7
- Number of Rows: 1
- Lock to Mating Part: Yes
- Keying to Mating Part: Yes
- Net Weight: 209.000 mg
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 1.0A
- Packaging Type: Bag
- Gender: Plug
- Glow-Wire Capable: No
- Stackable: No
- Panel Mount: No
- Breakaway: No
- Polarized to Mating Part: Yes
Buy the Molex Series 502380 CLIK-Mate Wire-to-Board Connector: 5023800700
Order the Molex CLIK-Mate wire-to-board connector housing today for reliable and secure signal connections. Designed with a 1.25mm pitch and a positive lock, this white housing offers a maximum of 7 circuits in a compact, single-row design. Its polyester resin construction provides durability with operating temperatures from -40°C to +105°C and a current capacity of 1.0A per contact. Suitable for quick, safe wire-to-board assembly, ideal for electronic device manufacturing and automation projects. Purchase online now for fast delivery and quality assurance.
Get Molex 5023800700 today—built for precise signal connections and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 5023800700?
You can click on the BUY or RFQ button to purchase 5023800700 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023800700?
You can download the 5023800700 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023800700?
MOLEX
