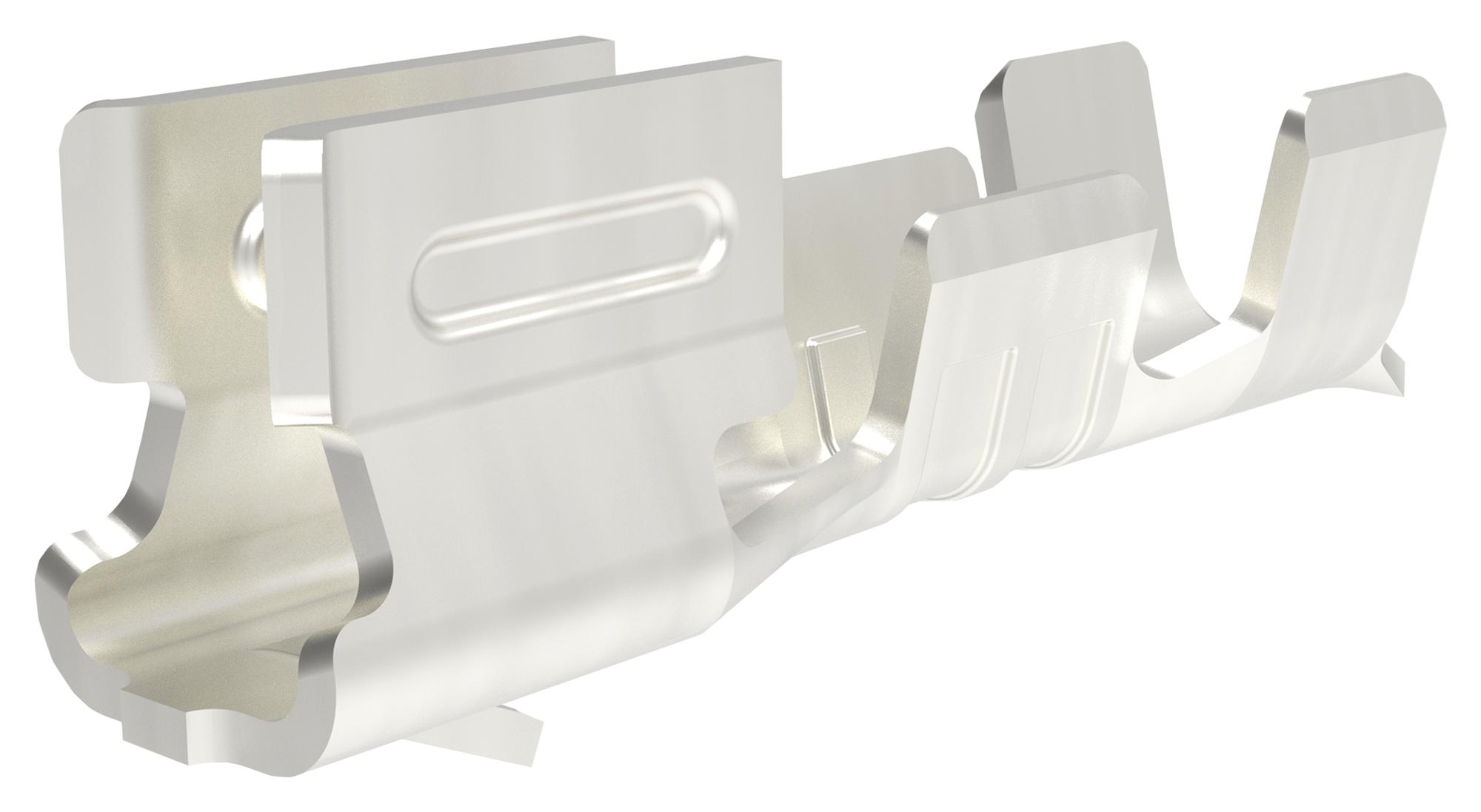

MOLEX 466261405 female crimp terminal
The LINK 250 female crimp terminal is a reliable, high-quality connector designed for wire sizes 26-28 AWG with tin (Sn) plating. It is suitable for power and wire-to-board applications, ensuring secure crimping with a maximum of 25 mating cycles. Made from copper alloy, it features durable tin plating on both mating and termination surfaces. Packaged on reels, this terminal supports a maximum current of 6.5A and a voltage of 250V AC/DC. It is RoHS compliant, halogen-free, and designed for easy, consistent crimping in a variety of electronic and industrial assemblies.
MOLEX 466261405 female crimp terminal Specifications:
- Wire Size: 26-28 AWG
- Wire Insulation Diameter: 1.17mm-1.30mm
- Material: Copper Alloy
- Material - Plating Mating: Tin (Sn)
- Material - Plating Termination: Tin (Sn)
- Durability: Maximum 25 mating cycles
- Current - Maximum: 6.5A
- Voltage - Maximum: 250V AC/DC
- Net Weight: 0.043 grams
- Packaging: Reel
- Termination Interface: Crimp
- Physical Dimensions: Compatible with LINK 250 Receptacle Housing
- RoHS Compliance: Yes
- Halogen-Free: Yes
Buy the Buy Molex LINK 250 Female Crimp Terminal Part Number 466261405 Online
Enhance your electronic assemblies with the Molex LINK 250 female crimp terminal, engineered for durability and efficiency. This reliable terminal supports 26-28 AWG wires, features tin plating for corrosion resistance, and is ideal for power and wire-to-board applications. Packaged on reels for ease of automation, it withstands up to 25 mating cycles while providing a maximum current of 6.5A and a voltage of 250V AC/DC. RoHS compliant and halogen-free, ensuring compliance and safety for various industrial projects.
Order your Molex Series LINK 250 0466261405 crimp terminal today and ensure secure, reliable connections for power and wire-to-board applications.
Frequently Asked Questions
Where can I buy MOLEX 466261405?
You can click on the BUY or RFQ button to purchase 466261405 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 466261405?
You can download the 466261405 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 466261405?
MOLEX
