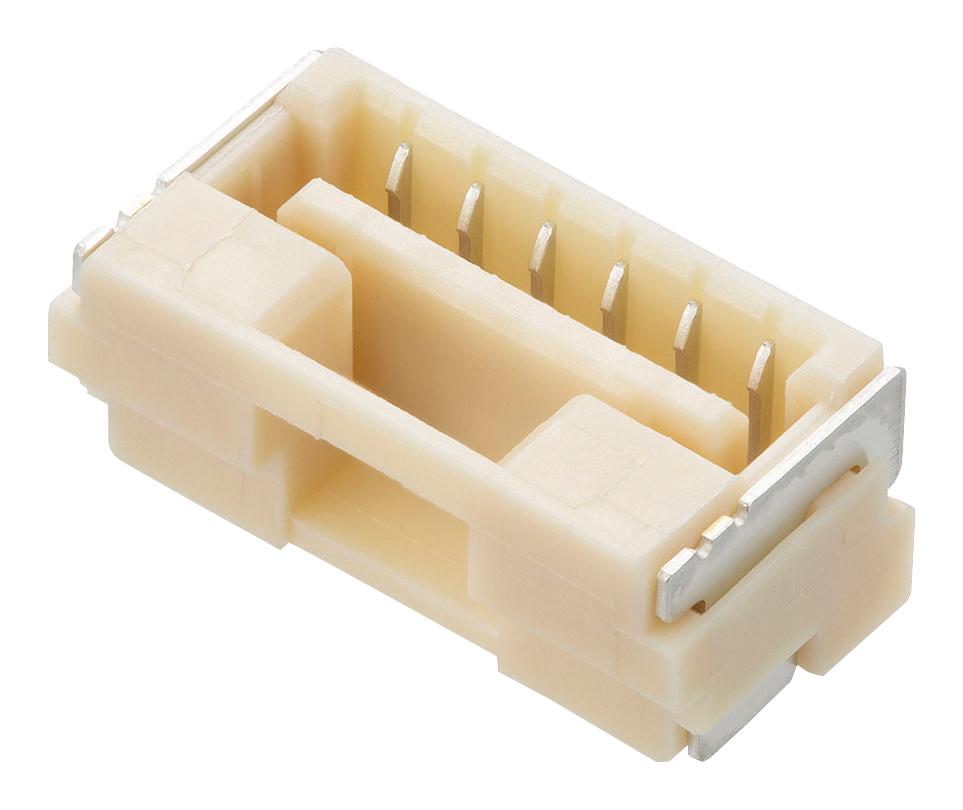

MOLEX 5023820970 Signal PCB Receptacle
This is a 1.25-watt wire-to-board PCB receptacle designed for high durability and reliable electrical performance in signal applications. It features a 9-circuit configuration with a compact 1.25mm pitch, suitable for space-constrained designs. Made from high-temperature thermoplastic, it is RoHS compliant and UL certified. The connector offers up to 30 mating cycles, supports a maximum current of 1.0A per contact, and withstands operating temperatures from -40°C to +105°C. Its PCB retention and polarization features ensure secure and correct mating in various electronic assemblies.
MOLEX 5023820970 Signal PCB Receptacle Specifications:
- Circuits (Loaded): 9
- Circuits (Maximum): 9
- Color - Resin: Natural
- Durability (Mating Cycles Max): 30
- Glow-Wire Capable: No
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Mated Height: 7.80 mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 417.201 mg
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.25 mm
- Pitch - Termination Interface: 1.25 mm
- Plating Min - Mating: 1.016 μm
- Plating Min - Termination: 1.016 μm
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- RoHS: Compliant
- UL Certification: Yes
