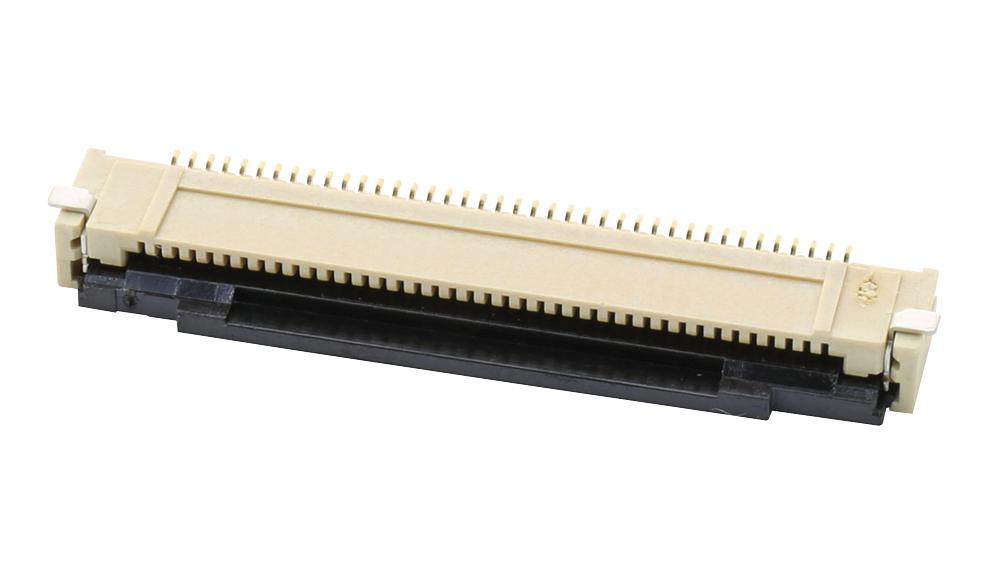

MOLEX 5027906491 FPC connector
The 5027906491 is a 0.50mm pitch easy-on front flip FPC connector designed for surface mount applications. Featuring a ZIF (Zero Insertion Force) design with double bottom contacts, it supports FFC and FPC cables with ear-tabs. With a height of 2.50mm, it offers reliable electrical connection for flexible circuit applications. Constructed from phosphor bronze with gold plating on contacts, it ensures durability and corrosion resistance. This connector is suitable for high-density electronics, providing smooth, secure, and easy installation in compact assembly environments. It operates efficiently within a temperature range of -40°C to +105°C.
MOLEX 5027906491 FPC connector Specifications:
- Pitch: 0.50mm
- Actuator Type: Flip, ZIF
- Number of Circuits: 64
- Color - Resin: Beige
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Height - Mated: 2.50mm
- Temperature Range - Operating: -40°C to +105°C
- Wire/Cable Type: FFC/FPC
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Surface Mount Technology: Yes
- PCB Mounting: Surface Mount
- PCB Retention: Yes
- Stackable: No
Buy the Molex 5027906491 – Reliable FPC Connector for Industrial Applications
Enhance your electronic assemblies with this high-quality FPC connector featuring a 0.50mm pitch, ZIF flip design, and gold-plated contacts for durability. Its surface mount configuration ensures easy and secure installation in compact spaces. Suitable for high-density flexible circuits, it supports reliable electrical connections with a maximum current of 0.5A and voltage of 50V. Operating efficiently between -40°C and +105°C, this connector is ideal for industrial electronics, consumer devices, and automation systems that demand precision, durability, and quick assembly.
Buy Molex 5027906491 now and experience unmatched reliability and performance in flexible circuit connections with quick surface mount installation.
Frequently Asked Questions
Where can I buy MOLEX 5027906491?
You can click on the BUY or RFQ button to purchase 5027906491 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5027906491?
You can download the 5027906491 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5027906491?
MOLEX
