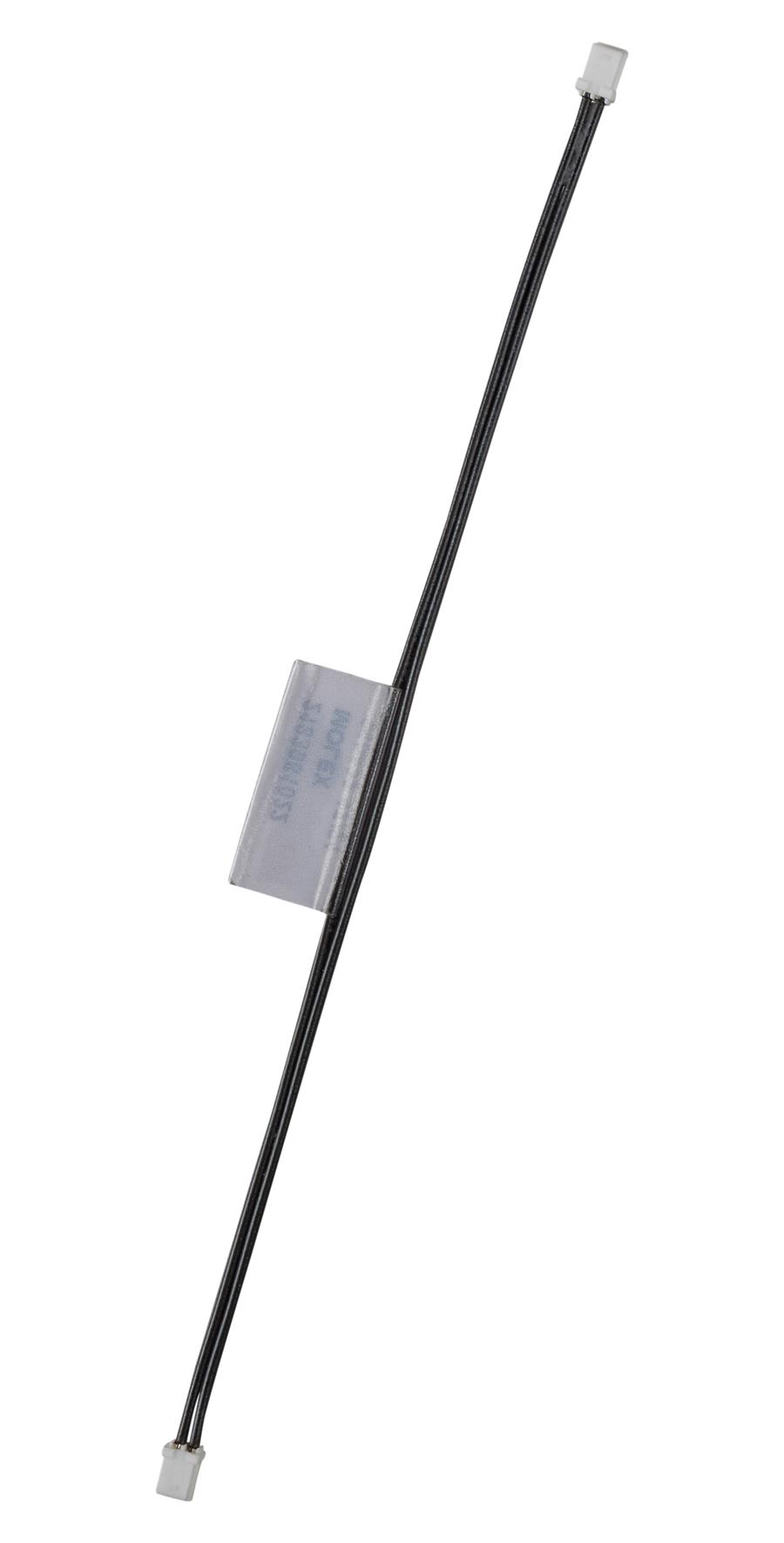

MOLEX 2183961024 Cable Assembly
The Pico-SpoX 1.5 mm pitch cable assemblies are off-the-shelf discrete wire solutions designed for prototyping and preproduction. They feature vertical and right-angle single-row headers with a friction lock for secure mating, offering approximately 30% space savings over 2 mm connectors. Constructed with nylon housing, phosphor bronze contacts, and tin plating, these assemblies support UL and CSA certification, operate up to 250VAC and 2.5A per contact, and are compatible with 24 AWG UL 10002 wire. Suitable for consumer electronics, industrial automation, and MedTech applications, they withstand -10°C to +105°C for up to 10 mating cycles.
MOLEX 2183961024 Cable Assembly Specifications:
- Pitch - Mating Interface: 1.50 mm
- Number of Circuits: 2
- Cable Length: 600.00 mm
- Wire Size AWG: 24
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 250 V
- Material - Metal: Phosphor bronze
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Temperature Range: -10°C to +105°C
- Lock to Mating Part: Yes
- Packaging Type: Bag
- Color - Resin: Natural
- Gender: Female-Female
- Termination Style: Crimp or Compression
- Wire Insulation Diameter: 0.95-1.20mm
- Certifications: UL, CSA
- Weight: 2.980 grams
Buy the Molex 2183961024 – Reliable Cable Assemblies for Industrial Applications
Discover the Molex Series 2183961024 Pico-SpoX cable assembly, featuring a 1.5 mm pitch, secure friction lock, and robust construction suitable for prototyping. Built with nylon housing and tin-plated phosphor bronze contacts, it supports up to 250VAC and 2.5A per contact, making it ideal for consumer, industrial, and MedTech applications. With a compact, space-efficient design, it offers reliable performance through up to 10 mating cycles and operates comfortably within -10°C to +105°C. Buy online now for dependable connectivity in your next project.
Order your Molex Series 2183961024 cable assemblies today and enhance your electronic projects with reliable, space-saving connectivity solutions.
Frequently Asked Questions
Where can I buy MOLEX 2183961024?
You can click on the BUY or RFQ button to purchase 2183961024 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183961024?
You can download the 2183961024 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183961024?
MOLEX
