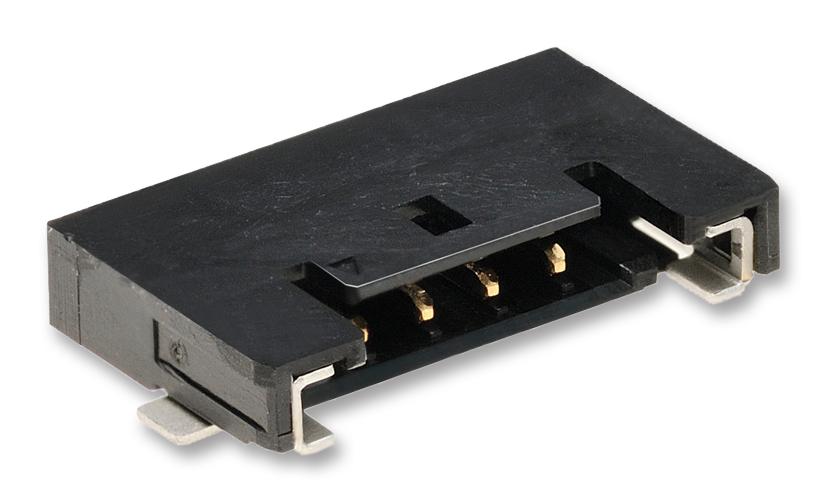

MOLEX 5037630291 Surface Mount Connector
The Pico-Lock™ connector system features a 1.00mm pitch surface mount header, right angle design, and a height of 1.50mm. It includes positive side locks to ensure secure connections across 2 circuits, with a maximum of 2 loaded circuits. Made from high-temperature thermoplastic with copper alloy contacts plated in gold over nickel, it supports 30 mating cycles, operates from -40°C to +105°C, and is RoHS and REACH compliant. Ideal for compact PCB applications requiring reliable, vibration-resistant connections in surface-mount configurations.
MOLEX 5037630291 Surface Mount Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 2 (maximum 2 loaded)
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Black
- Durability: 30 mating cycles
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 150V
- Orientation: Right Angle
- Termination Interface: Surface Mount Compatible
- Packaging: Embossed Tape on Reel
- Lock: Positive Side Locks
- Net Weight: Not specified
- Flammability: Not specified
- Compliance: RoHS, REACH, UL listed
Buy the Molex Series Pico-Lock Surface Mount Connector: 5037630291
Order the Molex Pico-Lock Surface Mount Connector 5037630291 online today for secure, durable, and high-performance PCB connections. Featuring a 1.00mm pitch, right angle design, and gold-plated contacts, this connector ensures reliable electrical connections with a maximum of 2 circuits. Its high-temp thermoplastic housing withstands temperatures from -40°C to +105°C, making it ideal for demanding electronics applications. With RoHS and REACH compliance, you can trust this component for environmentally friendly manufacturing and long-lasting performance in compact electronic assemblies.
Buy Molex 5037630291 now and experience reliable, vibration-resistant connections perfect for compact PCB designs.
Frequently Asked Questions
Where can I buy MOLEX 5037630291?
You can click on the BUY or RFQ button to purchase 5037630291 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5037630291?
You can download the 5037630291 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5037630291?
MOLEX
