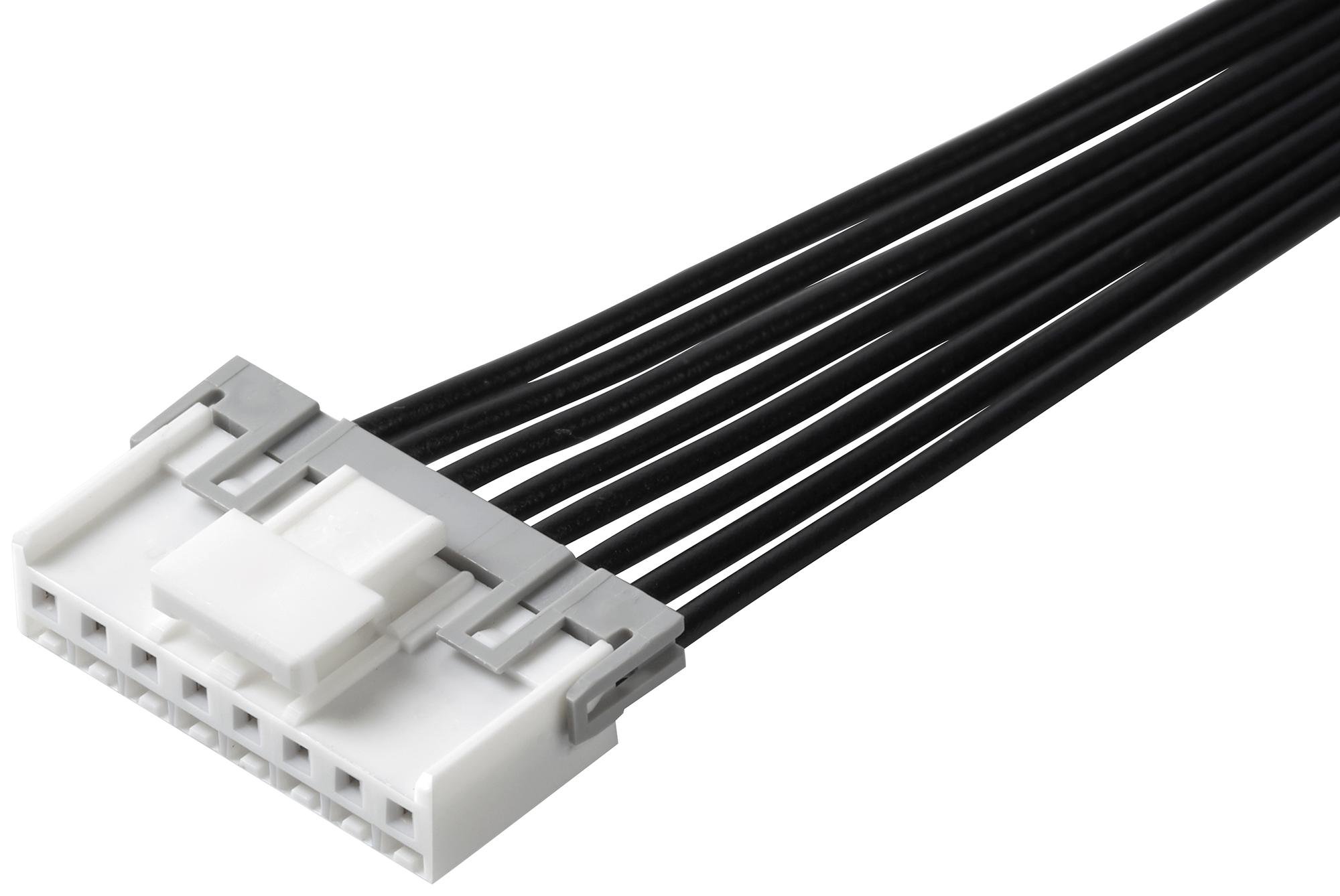

MOLEX 151370803 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0803 Mini-Lock wire-to-board connector assembly provides a reliable connection solution for signal transmission in diverse industrial applications. This dual-ended connector features a female-female configuration, 8 circuits, and a 300mm cable length, offering flexibility in system design. Constructed with copper alloy and plated with matte tin for both mating and termination interfaces, it ensures excellent conductivity and durability. The connector is RoHS compliant and designed for efficient wire-to-board connections, making it ideal for applications requiring robust and compact solutions.
MOLEX 151370803 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- description: Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.50mm
- circuits_loaded: 8
- cable_length: 300.00mm
- plating_min_mating: 0.889µm
- voltage_maximum: 250V AC (RMS)/DC
- material_resin: Polyester
- material_plating_mating: Matte Tin
- material_plating_termination: Matte Tin
- material_metal: Copper Alloy
- wire_size_awg: 22
- wire_cable_type: UL 1061
- color_resin: Natural
- net_weight: 15.710/g
- packaging_type: Bag
- single_ended: No
- termination_interface_style: Crimp or Compression
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
- drawing_number: 151370803-000
Buy the 15137-0803 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-0803 Mini-Lock Wire-to-Board Connector securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151370803?
You can click on the BUY or RFQ button to purchase 151370803 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151370803?
You can download the 151370803 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151370803?
MOLEX
