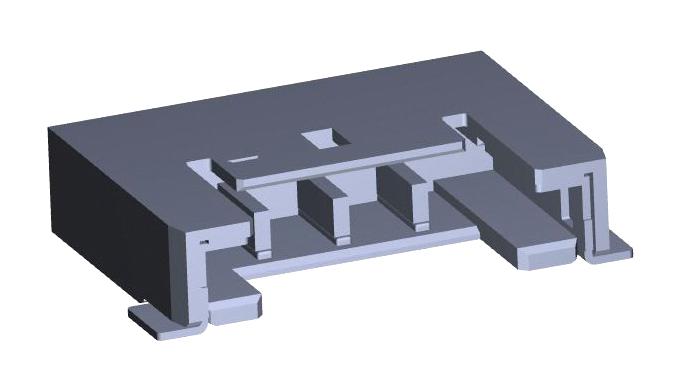

MOLEX 5040500391 Pico-Lock Connector
The Pico-Lock Connector System with a 1.50mm pitch features a dual-row, right-angle surface-mount wire-to-board header designed for reliable industrial applications. It has a gold over nickel plating, positive lock mechanism, and supports up to 3 circuits with a mated height of 2.00mm. Suitable for high-temperature environments, it offers durability up to 30 mating cycles, complies with RoHS, EU ELV, and is halogen-free. Ideal for compact, secure electrical connections in complex electronic systems, maintaining contact integrity and ease of installation in rugged industrial settings.
MOLEX 5040500391 Pico-Lock Connector Specifications:
- Pitch - Mating Interface: 1.50mm
- Number of Circuits (Loaded): 3
- Maximum Circuits: 3
- Mated Height: 2.00mm
- Material - Metal: Copper Alloy
- Material - Plating: Gold over Nickel
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 30
- Temperature Range - Operating: -40°C to +105°C
- Voltage - Maximum: 150V AC/DC
- Current - Maximum per Contact: 3.5A
- Package Type: Embossed Tape on Reel
- Surface Mount Compatible: Yes
- RoHS, EU ELV, Halogen-Free, Low-Halogen: Yes
- Color - Resin: Black
Buy the Molex 5040500391 – Reliable Pico-Lock for Industrial Applications
Experience dependable signal and power connections with the Pico-Lock Connector featuring a 1.50mm pitch, dual-row, right-angle surface-mount design. Constructed with gold over nickel plating for excellent corrosion resistance, it supports three circuits and provides a mated height of 2.00mm. This robust connector withstands up to 30 mating cycles, operates from -40°C to +105°C, and is RoHS compliant. Perfect for compact, high-reliability electronic assemblies demanding secure, durable connections in challenging industrial environments.
Get Molex 5040500391 today—built for precision and long-lasting durability in secure electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 5040500391?
You can click on the BUY or RFQ button to purchase 5040500391 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5040500391?
You can download the 5040500391 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5040500391?
MOLEX
