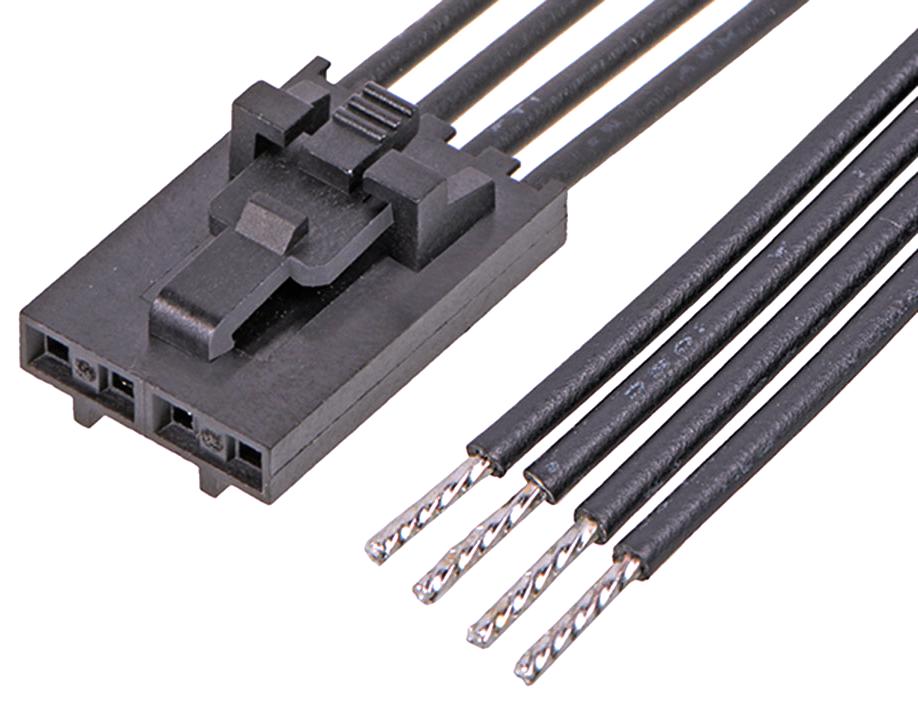

MOLEX 2162711042 Cable Assembly
This versatile stackable linear positive lock cable assembly is ideal for rapid prototyping and production. It features a durable polyester alloy housing and phosphor bronze contacts with tin plating, supporting various termination styles like crimp, FFC, and IDT. Designed with two independent contact points for increased electrical reliability, it includes a position assurance lock to prevent disengagement in vibration-prone environments. Rated for up to 600V and 3A, it operates in temperatures from -40°C to +105°C, making it suitable for consumer, industrial, automotive, and telecommunications applications, with UL and CSA safety certifications.
MOLEX 2162711042 Cable Assembly Specifications:
- Cable Length: 150.00mm
- Number of Circuits: 4
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 3.695 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 connection cycles
- Certifications: UL Listed, CSA Certified
Buy the Molex 216271 U+2013 Reliable Discrete Cable Assembly for Industrial Applications
Experience dependable electrical connections with Molex’s series 216271 cable assembly. Featuring a robust polyester alloy housing and tin-plated phosphor bronze contacts, it supports high-voltage and high-current applications up to 600V and 3A. Its design offers multiple termination options like crimp and FFC for flexible usage across industrial automation, consumer electronics, automotive, and telecom projects. With a compact 150mm length, it provides secure, vibration-resistant connections and easy PCB mounting. UL and CSA safety certifications confirm its reliability for critical applications. Buy online now for quality you can trust.
Order your Molex series 216271 150mm cable assembly today and ensure reliable connections in your industrial and automation projects.
