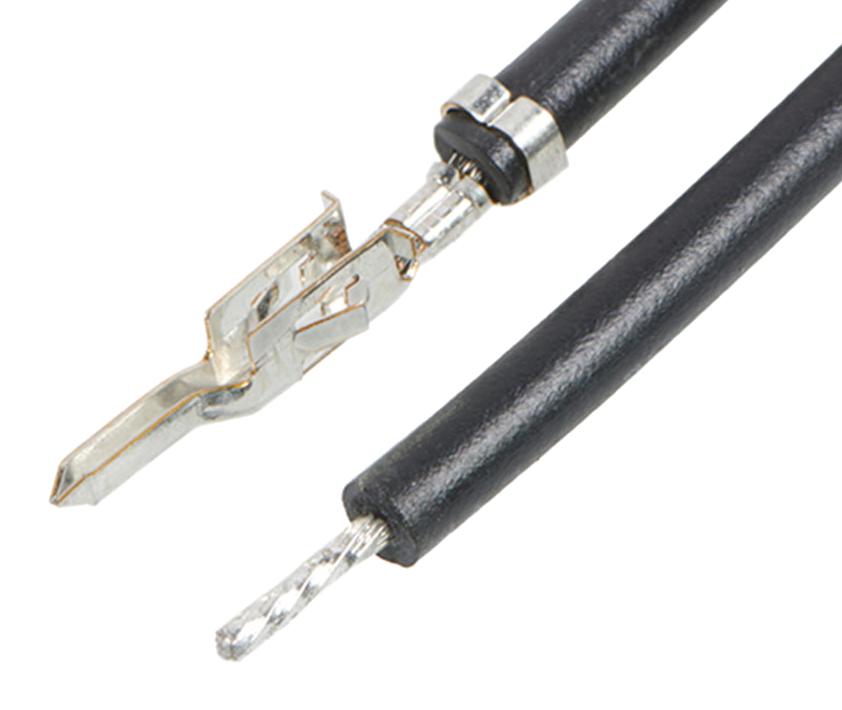

MOLEX 2153431122 Mini-Fit Jr. Pigtail
The MOLEX 215343-1122 is a pre-crimped lead assembly designed for power and wire-to-wire applications. It combines a Mini-Fit Jr. male connector with a pigtail termination, offering a ready-to-use solution for connecting power supplies, motors, and other electrical devices. The tin plating ensures excellent conductivity and corrosion resistance, while the 16 AWG wire gauge supports a maximum current of 9.0A and a voltage of 600V. This assembly simplifies installation and reduces assembly time, making it ideal for various industrial and commercial applications.
MOLEX 2153431122 Mini-Fit Jr. Pigtail Specifications:
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.729/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560202
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
