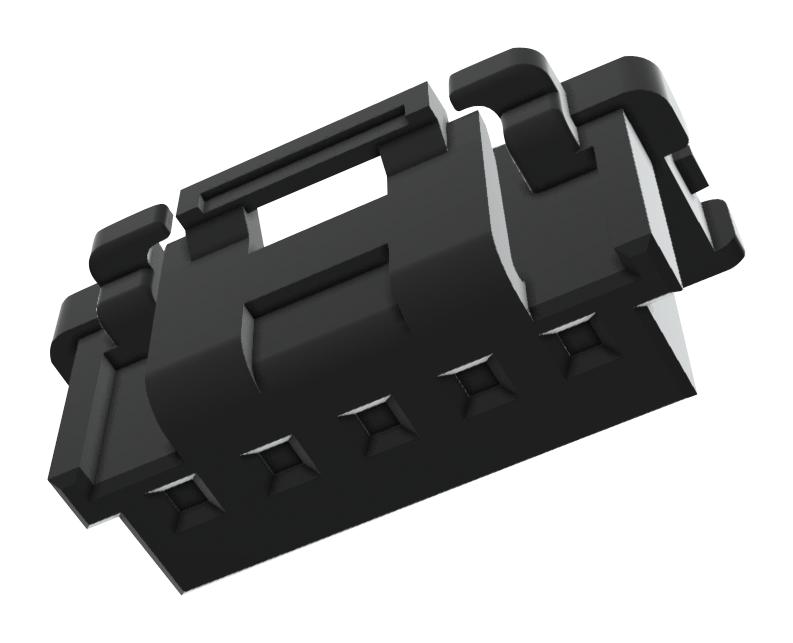

MOLEX 5051510500 Wire-to-Board Connector
The DuraClik TPA Wire-to-Board Receptacle Housing is a robust, high-performance connector designed for secure and reliable electrical connections in various electronic applications. Manufactured with durable polyester alloy, it supports up to 5 circuits in a sleek black color, ensuring resistance to high temperatures from -40°C to +125°C. The connector features a 2.00mm pitch for mating and termination interfaces, is UL-certified, and rohs compliant. Its stackable design simplifies integration, making it ideal for efficient, space-saving circuit assemblies in industrial and consumer electronics.
MOLEX 5051510500 Wire-to-Board Connector Specifications:
- Number of Circuits: 5
- Color - Resin: Black
- Material - Resin: Polyester Alloy
- Flammability: UL Listed
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Net Weight: 242.200 mg
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 2.00 mm
- Pitch - Termination Interface: 2.00 mm
- Temperature Range - Operating: -40°C to +125°C
- Reference - Drawing Numbers: AS-505151-001-001, AS-505151-002-001
- Agency Certification: UL
- RoHS Compliance: Yes
- EU ELV: Compliant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free: Yes
- Applications: Secure electrical connections in industrial and consumer electronics
- Use With: DuraClik TPA Retainer and Terminal series
- Mates With: DuraClik Right-Angle Header 502352, DuraClik Vertical Header 560020
Buy the Buy Molex DuraClik Part Number 5051510500 Online
Purchase the Molex DuraClik Wire-to-Board Receptacle Housing online and experience reliable, high-quality electrical connections for your electronic projects. Designed with a 2.00mm pitch, UL certification, and RoHS compliance, it supports up to 5 circuits in a compact, stackable design suitable for industrial and consumer electronics. Operating efficiently in temperatures from -40°C to +125°C, the connector features robust polyester alloy construction, ensuring durability and resistance in demanding environments. Order today for fast delivery and seamless integration into your electronic assemblies.
Get Molex 5051510500 today—built for precision and long-lasting durability in secure electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 5051510500?
You can click on the BUY or RFQ button to purchase 5051510500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5051510500?
You can download the 5051510500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5051510500?
MOLEX
