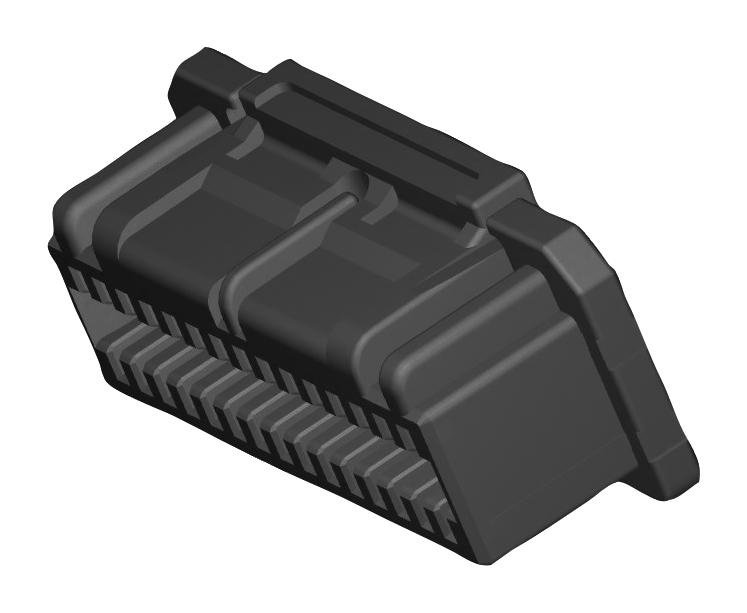

MOLEX 5054323001 Wire-to-Board Connector
The Micro-Lock Plus Receptacle Housing is a reliable wire-to-board connector featuring a 1.25mm pitch and dual row configuration. Designed for secure connections, it includes a positive lock and houses 30 circuits in a black resin body. Suitable for various industrial applications, this connector is UL certified and RoHS compliant, offering operating temperature range from -40°C to +105°C. It mates with Micro-Lock Plus headers and is used with compatible terminals, ensuring dependable electrical performance and easy assembly in compact electronic devices.
MOLEX 5054323001 Wire-to-Board Connector Specifications:
- Circuits: 30
- Color: Black
- Gender: Receptacle
- Material: Polyester
- Net Weight: 592.407 mg
- Number of Rows: 2
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Temperature Range - Operating: -40°C to +105°C
- Agency Certification: UL
- RoHS Compliance: Yes
- Halogen-Free: Not Low-Halogen
- Use With: Micro-Lock PLUS Terminal 505431
- Mates With: Micro-Lock PLUS Vertical Header 505433, Right Angle Header 505448
Buy the Buy Molex Micro-Lock Plus Receptacle Housing Part Number 5054323001 Online
Purchase the Molex Micro-Lock Plus Receptacle Housing Part Number 5054323001 online today. This high-quality connector features a 1.25mm pitch, dual row design, and positive lock for secure connections. It offers 30 circuits in a durable black polyester body rated for temperatures from -40°C to +105°C. RoHS compliant and UL certified, it is ideal for industrial and electronic applications requiring reliable assembly, ease of use, and high performance in tight spaces. Get yours now for efficient, dependable connections.
Order your Molex Series505432 Micro-Lock Plus Receptacle Housing 5054323001 today and ensure secure, reliable wire-to-board connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5054323001?
You can click on the BUY or RFQ button to purchase 5054323001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5054323001?
You can download the 5054323001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5054323001?
MOLEX
