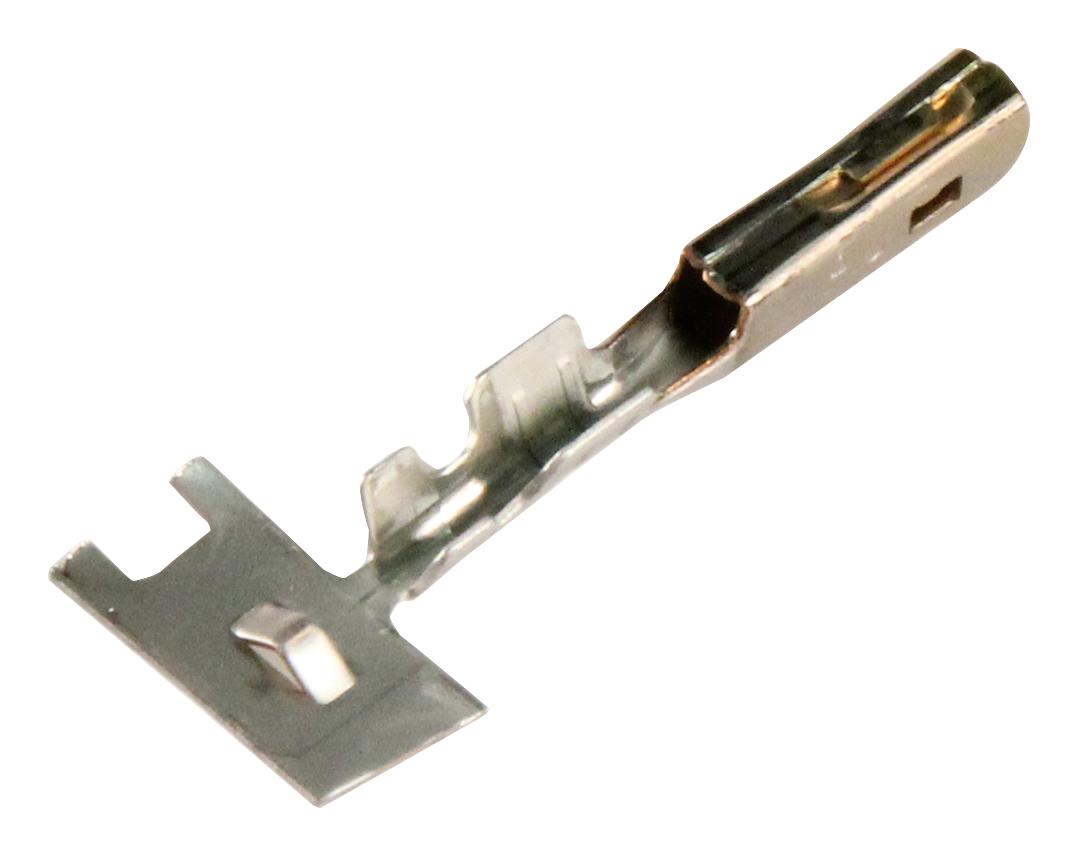

MOLEX 330012003 Crimp Terminal
The MX150 Female Terminal Sealed with Gold Plating is designed for reliable electrical connections in wire-to-wire and wire-to-board applications. Compatible with 14 and 16 AWG wires, it features high-performance alloy, tin and gold plating for corrosion resistance and excellent conductivity. Suitable for automatic and semi-automatic crimping, it offers a secure crimp or compression interface. The terminal is packaged on reels, making it ideal for automation, and complies with EU RoHS, ELV, and REACH standards for environmentally friendly operations. Its robust design ensures high performance in demanding electrical environments.
MOLEX 330012003 Crimp Terminal Specifications:
- Material - Metal: High Performance Alloy (HPA)
- Plating - Mating: Gold, Tin
- Wire Size AWG: 14, 16
- Wire Diameter Max: 2.70mm
- Crimp or Compression: Yes
- Current Max per Contact: 14V DC
- Packaging: Reel
- Net Weight: 0.435g
- Contact Gender: Female
- Grip Code: 0.762um
- Material - Plating Termination: Tin
- Material - Plating Mating: Gold
- Compatibility: Use with 33472 dual row, 33476 hybrid, and 33471 single row housings
- Certification: EU RoHS, ELV, REACH SVHC not contained
- Lead-Free Process Capability: Yes
- Product Family: Crimp Terminals
- Product Series: MX150
Buy the Buy Molex Crimp Terminals Part Number 330012003 Online
Purchase the Molex MX150 Female Sealed Terminal Part Number 330012003 online for high-quality, corrosion-resistant electrical connections. Ideal for automation, wire-to-wire, and wire-to-board applications, this crimp terminal features gold and tin plating for durability and conductivity. Its reel packaging supports efficient automatic crimping processes, reducing assembly time. Compliant with RoHS, ELV, and REACH standards, it guarantees environmentally friendly and reliable performance in demanding industries. Order now to improve your electrical system’s efficiency and performance with this top-grade terminal.
Order your Molex Series MX150 330012003 female sealed terminal today and ensure reliable, corrosion-resistant connections for your electrical projects.
Frequently Asked Questions
Where can I buy MOLEX 330012003?
You can click on the BUY or RFQ button to purchase 330012003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 330012003?
You can download the 330012003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 330012003?
MOLEX
